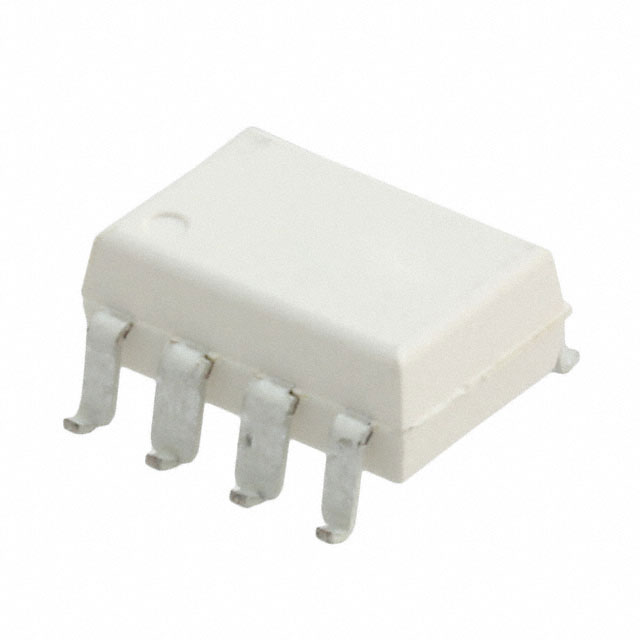

6N137SVM
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6N137SVM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6N137SVM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6N137SVM |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 5KV 1CH OPEN COLL 8SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.54 | $0.438 | $0.303 | $0.229 | $0.189 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 6N137SVM | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISO 5KV 1CH OPEN COLL 8SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 126290 pcs | Data sheet | 6N137M, HCPL26xxM Preliminary |
| Category | Isolators | Voltage - Supply | 4.5 V ~ 5.5 V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.45V |
| Supplier Device Package | 8-SMD | Series | - |
| Rise / Fall Time (Typ) | 30ns, 10ns | Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Packaging | Tube | Package / Case | 8-SMD, Gull Wing |
| Output Type | Open Collector | Other Names | 6N137SVMCT 6N137SVMCT-ND 6N137SVMTR 6N137SVMTR-ND |
| Operating Temperature | -40°C ~ 100°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator 10Mbps Open Collector 5000Vrms 1 Channel 10kV/µs (Typ) CMTI 8-SMD |
| Data Rate | 10Mbps | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 50mA | Common Mode Transient Immunity (Min) | 10kV/µs (Typ) |
