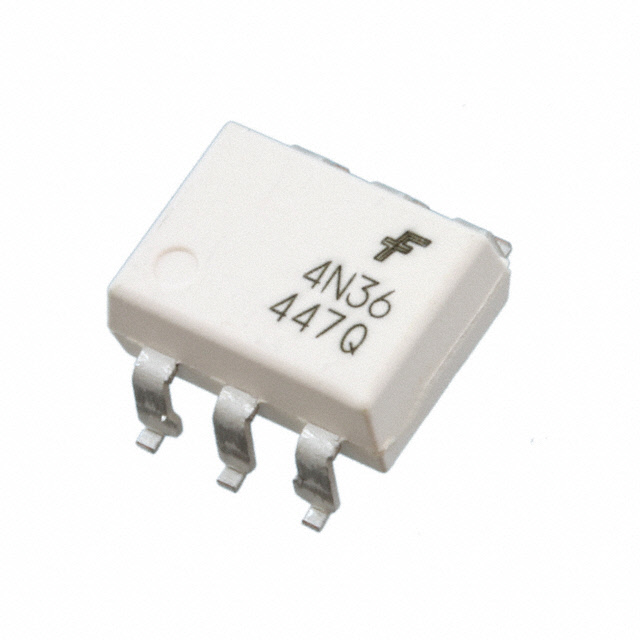

4N36SR2M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4N36SR2M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4N36SR2M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4N36SR2M |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | OPTOISO 4.17KV TRANS W/BASE 6SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.268 | $0.208 | $0.149 | $0.113 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4N36SR2M | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | OPTOISO 4.17KV TRANS W/BASE 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 172627 pcs | Data sheet | 4N25-28M,35-37M,H11AxM |
| Category | Isolators | Voltage - Output (Max) | 30V |
| Voltage - Isolation | 4170Vrms | Voltage - Forward (Vf) (Typ) | 1.18V |
| Vce Saturation (Max) | 300mV | Turn On / Turn Off Time (Typ) | 2µs, 2µs |
| Supplier Device Package | 6-SMD | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Original-Reel® |
| Package / Case | 6-SMD, Gull Wing | Output Type | Transistor with Base |
| Other Names | 4N36SR2MDKR | Operating Temperature | -40°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD | Current Transfer Ratio (Min) | 40% @ 10mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | - |
| Current - DC Forward (If) (Max) | 60mA | Base Part Number | 4N36 |
