2N5686G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2N5686G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2N5686G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2N5686G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |

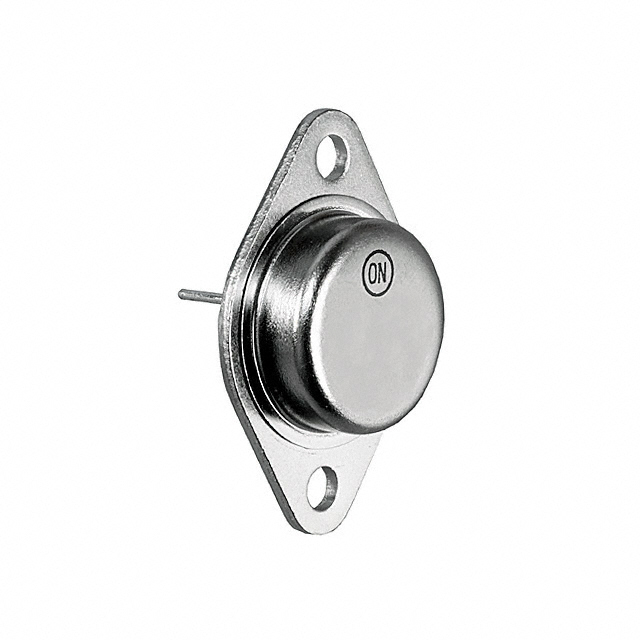

| Description | TRANS NPN 80V 50A TO3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $5.005 | $4.60 | $3.885 | $3.456 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2N5686G | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | TRANS NPN 80V 50A TO3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10995 pcs | Data sheet | 2N5684, 5686 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 80V |
| Vce Saturation (Max) @ Ib, Ic | 5V @ 10A, 50A | Transistor Type | NPN |
| Supplier Device Package | TO-3 | Series | - |
| Power - Max | 300W | Packaging | Tray |
| Package / Case | TO-204AE | Other Names | 2N5686GOS |
| Operating Temperature | -65°C ~ 200°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | 2MHz |
| Detailed Description | Bipolar (BJT) Transistor NPN 80V 50A 2MHz 300W Through Hole TO-3 | DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 25A, 2V |
| Current - Collector Cutoff (Max) | 1mA | Current - Collector (Ic) (Max) | 50A |
| Base Part Number | 2N5686 |
