Home > Products > Discrete Semiconductor Products > Transistors - Bipolar (BJT) - Single > 2N5655G

2N5655G

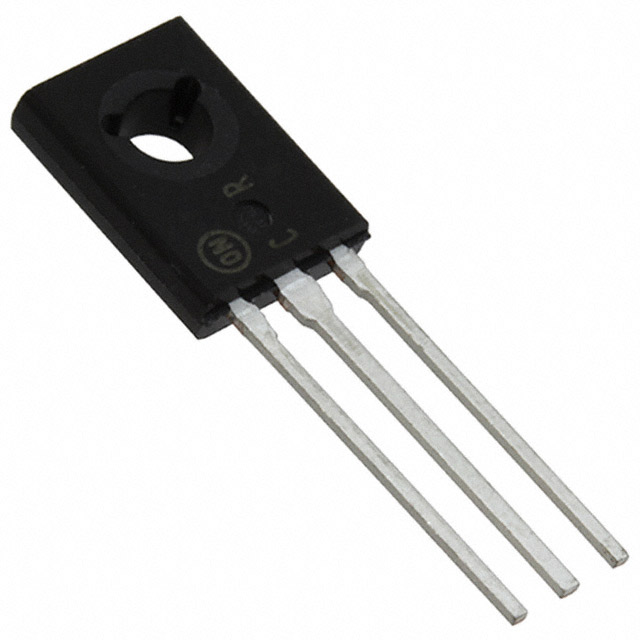

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2N5655G with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	2N5655G
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	TRANS NPN 250V 0.5A TO225AA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5208 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	2N5655G	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	TRANS NPN 250V 0.5A TO225AA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5208 pcs	Data sheet	2N5655G, 5657G
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	250V
Vce Saturation (Max) @ Ib, Ic	10V @ 100mA, 500mA	Transistor Type	NPN
Supplier Device Package	TO-225AA	Series	-
Power - Max	20W	Packaging	Bulk
Package / Case	TO-225AA, TO-126-3	Other Names	2N5655GOS
Operating Temperature	-65°C ~ 150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Transition	10MHz	Detailed Description	Bipolar (BJT) Transistor NPN 250V 500mA 10MHz 20W Through Hole TO-225AA
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 100mA, 10mV	Current - Collector Cutoff (Max)	100µA
Current - Collector (Ic) (Max)	500mA	Base Part Number	2N5655
