2N3442

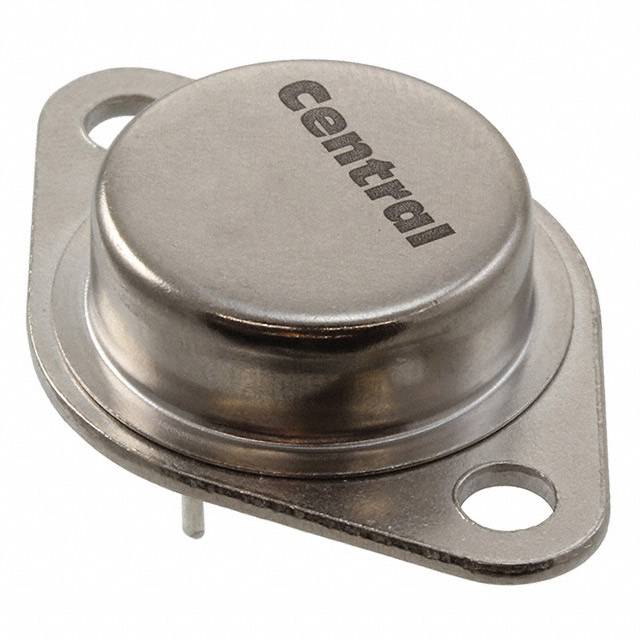

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2N3442 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2N3442 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2N3442 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS NPN 140V 10A TO3 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2N3442 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | TRANS NPN 140V 10A TO3 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4239 pcs | Data sheet | 2N3442 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 140V |
| Vce Saturation (Max) @ Ib, Ic | 5V @ 2A, 10A | Transistor Type | NPN |
| Supplier Device Package | TO-204 (TO-3) | Series | - |
| Power - Max | 117W | Packaging | Tray |
| Package / Case | TO-204AA, TO-3 | Operating Temperature | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Frequency - Transition | 80MHz |
| Detailed Description | Bipolar (BJT) Transistor NPN 140V 10A 80MHz 117W Through Hole TO-204 (TO-3) | DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 3A, 4V |
| Current - Collector Cutoff (Max) | 200mA | Current - Collector (Ic) (Max) | 10A |
| Base Part Number | 2N3442 |
