LTC3862IGN#PBF

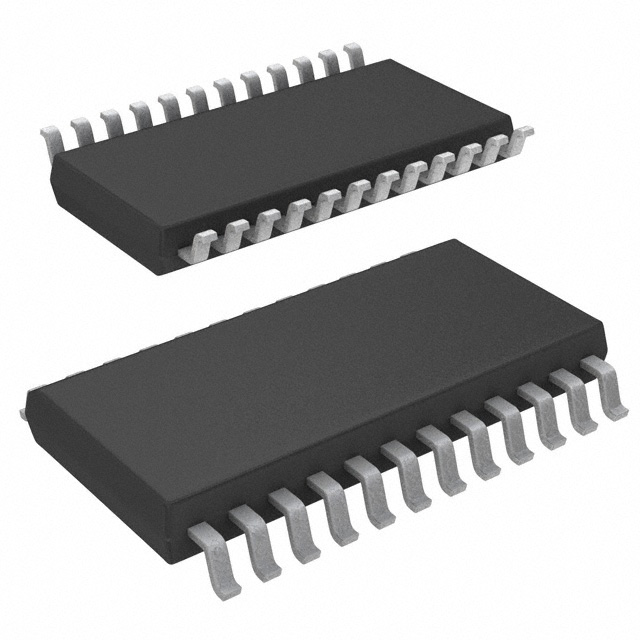

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTC3862IGN#PBF with confidence from Components-World.HK, 1 Year Warranty
Dowload LTC3862IGN#PBF Details in PDFSee Product Specifications for product details.
Buy LTC3862IGN#PBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTC3862IGN#PBF |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC REG CTRLR BOOST/SEPIC 24SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.927 | $1.961 | $1.669 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTC3862IGN#PBF | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC REG CTRLR BOOST/SEPIC 24SSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22994 pcs | Data sheet | LTC3862 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 4 V ~ 36 V |
| Topology | Boost, SEPIC | Synchronous Rectifier | No |
| Supplier Device Package | 24-SSOP | Series | - |
| Serial Interfaces | - | Packaging | Tube |
| Package / Case | 24-SSOP (0.154", 3.90mm Width) | Output Type | Transistor Driver |
| Output Phases | 2 | Output Configuration | Positive |
| Other Names | LTC3862IGNPBF | Operating Temperature | -40°C ~ 125°C (TJ) |
| Number of Outputs | 2 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Step-Up, Step-Up/Step-Down | Frequency - Switching | 75kHz ~ 500kHz |
| Duty Cycle (Max) | 96% | Detailed Description | Boost, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 24-SSOP |
| Control Features | Enable, Frequency Control, Phase Control, Soft Start | Clock Sync | Yes |
| Base Part Number | LTC3862 |
