LTC3861IUHE#TRPBF

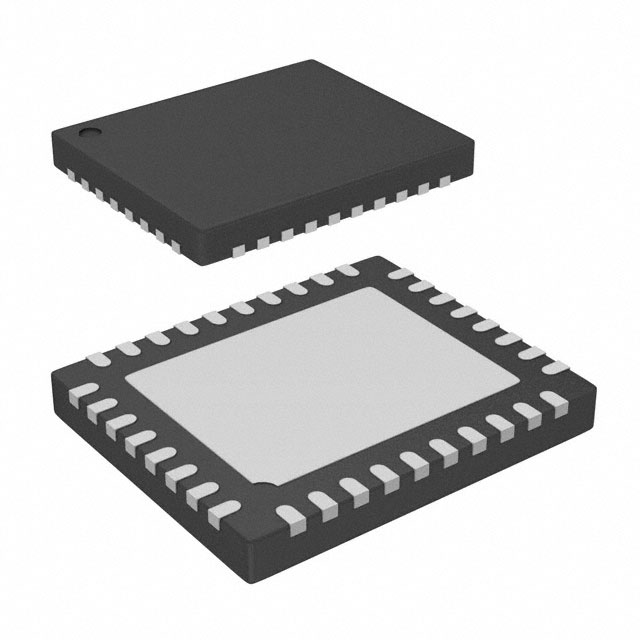

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTC3861IUHE#TRPBF with confidence from Components-World.HK, 1 Year Warranty
Dowload LTC3861IUHE#TRPBF Details in PDFSee Product Specifications for product details.
Buy LTC3861IUHE#TRPBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTC3861IUHE#TRPBF |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC REG CTRLR BUCK 36QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | ||||
|---|---|---|---|---|---|
| $1.476 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTC3861IUHE#TRPBF | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC REG CTRLR BUCK 36QFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25957 pcs | Data sheet | LTC3861 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 3 V ~ 5.5 V |
| Topology | Buck | Synchronous Rectifier | No |
| Supplier Device Package | 36-QFN (5x6) | Series | PolyPhase® |
| Serial Interfaces | - | Packaging | Tape & Reel (TR) |
| Package / Case | 36-WFQFN Exposed Pad | Output Type | PWM Signal |
| Output Phases | 2 | Output Configuration | Positive |
| Operating Temperature | -40°C ~ 125°C (TJ) | Number of Outputs | 2 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Function | Step-Down |
| Frequency - Switching | 250kHz ~ 3MHz | Duty Cycle (Max) | 91.5% |
| Detailed Description | Buck Regulator Positive Output Step-Down DC-DC Controller IC 36-QFN (5x6) | Control Features | Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start, Tracking |
| Clock Sync | No | Base Part Number | LTC3861 |
