LTC3859IUHF#TRPBF

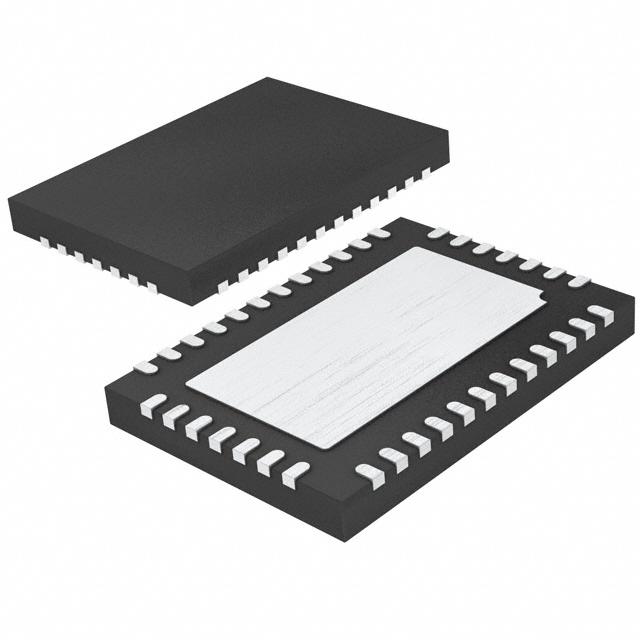

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTC3859IUHF#TRPBF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LTC3859IUHF#TRPBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTC3859IUHF#TRPBF |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC REG CTRLR MULT TOPOLOGY 38QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | ||||
|---|---|---|---|---|---|
| $2.216 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTC3859IUHF#TRPBF | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC REG CTRLR MULT TOPOLOGY 38QFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14923 pcs | Data sheet | LTC3859 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 4.5 V ~ 38 V |
| Topology | Buck, Buck-Boost, SEPIC | Synchronous Rectifier | Yes |
| Supplier Device Package | 38-QFN (5x7) | Series | - |
| Serial Interfaces | - | Packaging | Tape & Reel (TR) |
| Package / Case | 38-WFQFN Exposed Pad | Output Type | Transistor Driver |
| Output Phases | 2 | Output Configuration | Positive |
| Operating Temperature | -40°C ~ 125°C (TJ) | Number of Outputs | 3 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Function | Step-Down, Step-Up/Step-Down |
| Frequency - Switching | 115kHz ~ 835kHz, 350kHz ~ 535kHz | Duty Cycle (Max) | 99%, 100% |
| Detailed Description | Buck, Buck-Boost, SEPIC Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 38-QFN (5x7) | Control Features | Enable, Frequency Control, Power Good, Soft Start, Tracking |
| Clock Sync | No | Base Part Number | LTC3859 |
