LTC3789IUFD#PBF

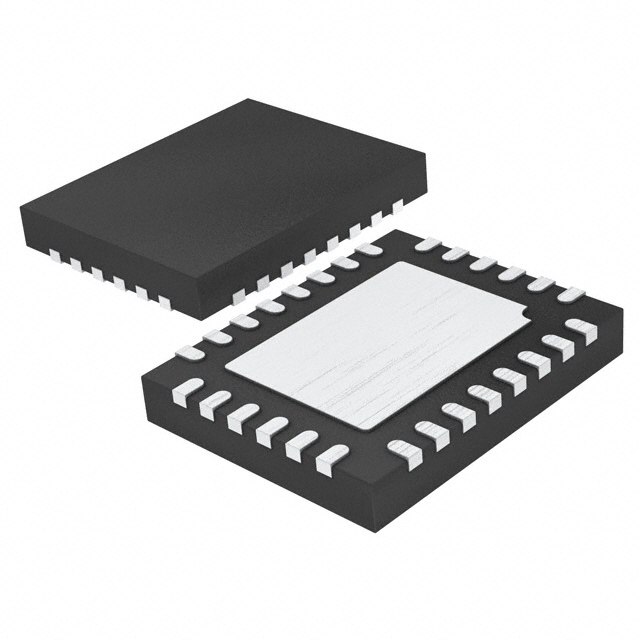

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTC3789IUFD#PBF with confidence from Components-World.HK, 1 Year Warranty
Dowload LTC3789IUFD#PBF Details in PDFSee Product Specifications for product details.
Buy LTC3789IUFD#PBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTC3789IUFD#PBF |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC REG CTRLR BUCK-BOOST 28QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $4.069 | $2.811 | $2.314 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTC3789IUFD#PBF | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC REG CTRLR BUCK-BOOST 28QFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13643 pcs | Data sheet | LTC3789 DatasheetMac OS X ShortcutsLTspice FlyerLTspice IV Getting Started GuideLTpowerCAD II User GuideLTpowerCAD II Quick Start Guide |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 4 V ~ 38 V |
| Topology | Buck-Boost | Synchronous Rectifier | Yes |
| Supplier Device Package | 28-QFN (4x5) | Series | - |
| Serial Interfaces | - | Packaging | Tube |
| Package / Case | 28-WFQFN Exposed Pad | Output Type | Transistor Driver |
| Output Phases | 1 | Output Configuration | Positive |
| Operating Temperature | -40°C ~ 125°C (TJ) | Number of Outputs | 2 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Function | Step-Up/Step-Down |
| Frequency - Switching | 200kHz ~ 640kHz | Duty Cycle (Max) | 90% |
| Detailed Description | Buck-Boost Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 28-QFN (4x5) | Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Clock Sync | No | Base Part Number | LTC3789 |
