LTC2296IUP#TRPBF

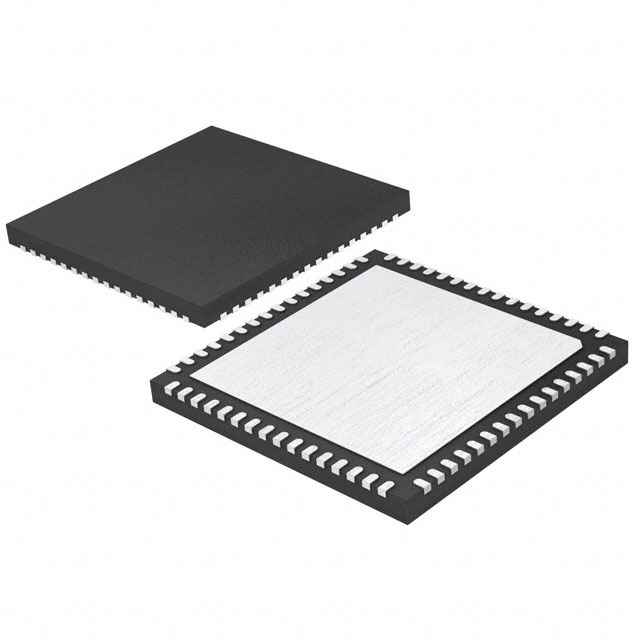

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LTC2296IUP#TRPBF with confidence from Components-World.HK, 1 Year Warranty
Dowload LTC2296IUP#TRPBF Details in PDFSee Product Specifications for product details.
Buy LTC2296IUP#TRPBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LTC2296IUP#TRPBF |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC ADC DUAL 14BIT 25MSPS 64QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $9.633 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LTC2296IUP#TRPBF | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC ADC DUAL 14BIT 25MSPS 64QFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3464 pcs | Data sheet | LTC2298/97/96 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Digital | 2.7 V ~ 3.4 V |
| Voltage - Supply, Analog | 2.7 V ~ 3.4 V | Supplier Device Package | 64-QFN (9x9) |
| Series | - | Sampling Rate (Per Second) | 25M |
| Reference Type | External, Internal | Ratio - S/H:ADC | 1:1 |
| Packaging | Tape & Reel (TR) | Package / Case | 64-WFQFN Exposed Pad |
| Operating Temperature | -40°C ~ 85°C | Number of Inputs | 2 |
| Number of Bits | 14 | Number of A/D Converters | 2 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | Differential, Single Ended |
| Features | Simultaneous Sampling | Detailed Description | 14 Bit Analog to Digital Converter 2 Input 2 Pipelined 64-QFN (9x9) |
| Data Interface | Parallel | Configuration | S/H-ADC |
| Base Part Number | LTC2296 | Architecture | Pipelined |
