LT8331IMSE#PBF

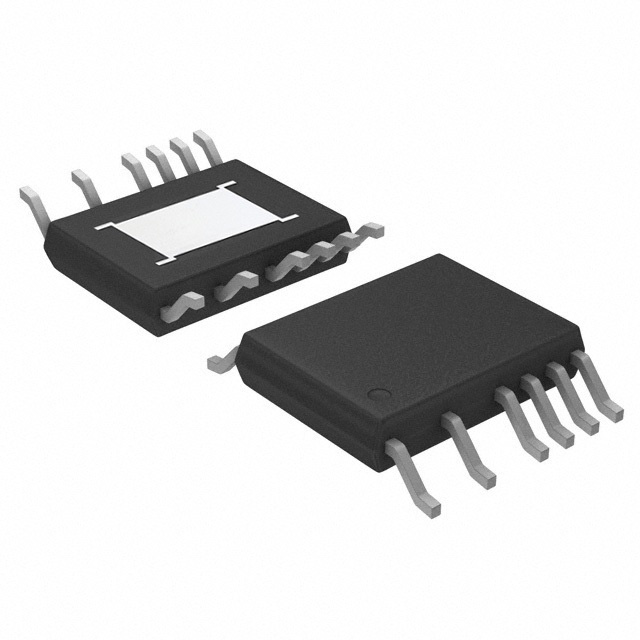

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LT8331IMSE#PBF with confidence from Components-World.HK, 1 Year Warranty
Dowload LT8331IMSE#PBF Details in PDFSee Product Specifications for product details.
Buy LT8331IMSE#PBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LT8331IMSE#PBF |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC REG MULT CONFIG INV 16MSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.554 | $1.705 | $1.451 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LT8331IMSE#PBF | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC REG MULT CONFIG INV 16MSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23417 pcs | Data sheet | Mac OS X ShortcutsLTspice FlyerLT8331 DatasheetLTspice IV Getting Started GuideLTpowerCAD II User GuideLTpowerCAD II Quick Start Guide |
| Category | Integrated Circuits (ICs) | Voltage - Output (Min/Fixed) | 1.6V, -0.8V |
| Voltage - Output (Max) | 140V (Switch) | Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 100V | Topology | Boost, Flyback, SEPIC |
| Synchronous Rectifier | No | Supplier Device Package | 16-MSOP-EP |
| Series | - | Packaging | Tube |
| Package / Case | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad, 12 Leads | Output Type | Adjustable |
| Output Configuration | Positive or Negative, Isolation Capable | Operating Temperature | -40°C ~ 125°C (TJ) |
| Number of Outputs | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Function | Step-Up, Step-Up/Step-Down |
| Frequency - Switching | 100kHz ~ 500kHz | Detailed Description | Boost, Flyback, SEPIC Switching Regulator IC Positive or Negative, Isolation Capable Adjustable 1.6V, -0.8V 1 Output 500mA (Switch) 16-TFSOP (0.118", 3.00mm Width) Exposed Pad, 12 Leads |
| Current - Output | 500mA (Switch) | Base Part Number | LT8331 |
