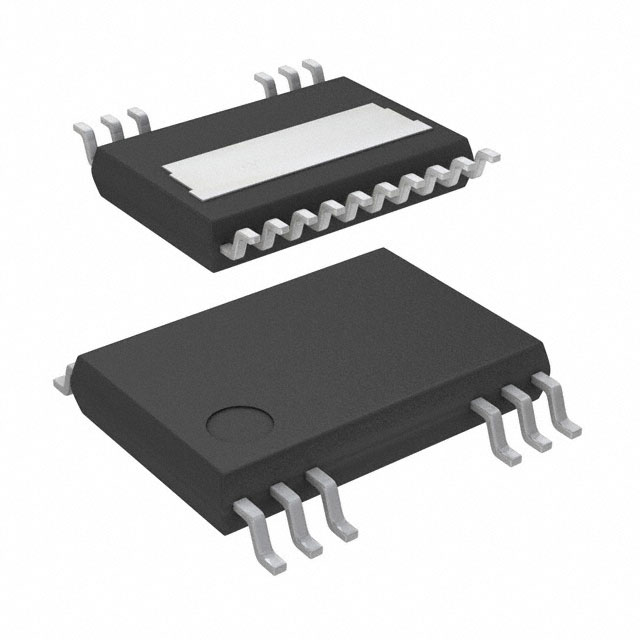

LT8315EFE#PBF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LT8315EFE#PBF with confidence from Components-World.HK, 1 Year Warranty
Dowload LT8315EFE#PBF Details in PDFSee Product Specifications for product details.
Buy LT8315EFE#PBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LT8315EFE#PBF |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC REG CTRLR FLYBACK 20TSSOP |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 25 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $3.205 | $2.135 | $1.815 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | LT8315EFE#PBF | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC REG CTRLR FLYBACK 20TSSOP | Lead Free Status / RoHS Status | |
| Quantity Available | 16483 pcs | Data sheet | LT8315 Datasheet |
| Category | Integrated Circuits (ICs) | Voltage - Output (Min/Fixed) | - |
| Voltage - Output (Max) | - | Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 560V | Topology | Flyback |
| Synchronous Rectifier | No | Supplier Device Package | 20-TSSOP-EP |
| Series | - | Packaging | Tube |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad | Output Type | Fixed |
| Output Configuration | Positive, Isolation Capable | Operating Temperature | -40°C ~ 125°C (TJ) |
| Number of Outputs | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Function | Step-Down, Step-Up/Step-Down |
| Frequency - Switching | 220Hz ~ 140kHz | Detailed Description | Flyback Switching Regulator IC Positive, Isolation Capable Fixed 1 Output 800mA 20-TSSOP (0.173", 4.40mm Width), 16 Leads, Exposed Pad |
| Current - Output | 800mA | Base Part Number | LT8315 |
