LT3748MPMS#TRPBF

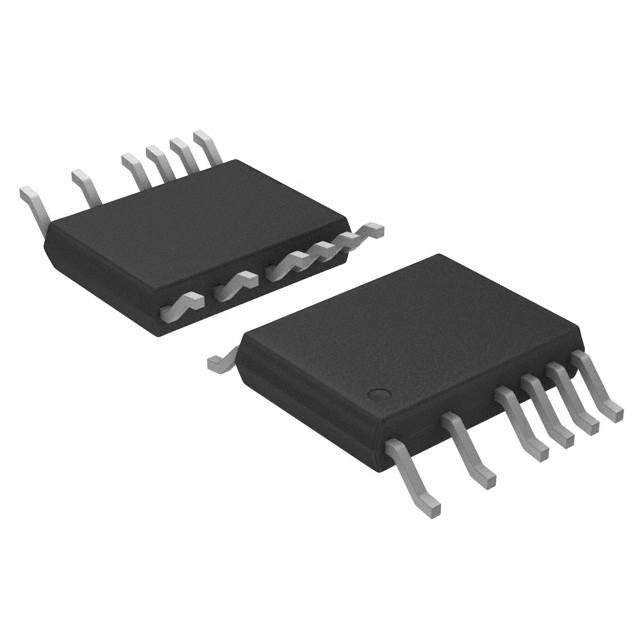

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LT3748MPMS#TRPBF with confidence from Components-World.HK, 1 Year Warranty
Dowload LT3748MPMS#TRPBF Details in PDFSee Product Specifications for product details.
Buy LT3748MPMS#TRPBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LT3748MPMS#TRPBF |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC REG CTRLR FLYBACK 16MSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | ||||
|---|---|---|---|---|---|
| $4.144 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LT3748MPMS#TRPBF | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC REG CTRLR FLYBACK 16MSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9053 pcs | Data sheet | Mac OS X ShortcutsLTspice FlyerLTspice IV Getting Started GuideLT3748 Datasheet |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 5 V ~ 100 V |
| Topology | Flyback | Synchronous Rectifier | No |
| Supplier Device Package | 16-MSOP | Series | - |
| Serial Interfaces | - | Packaging | Tape & Reel (TR) |
| Package / Case | 16-TFSOP (0.118", 3.00mm Width), 12 Leads | Output Type | Transistor Driver |
| Output Phases | 1 | Output Configuration | Positive, Isolation Capable |
| Operating Temperature | -55°C ~ 150°C (TJ) | Number of Outputs | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Function | Step-Up/Step-Down |
| Frequency - Switching | - | Duty Cycle (Max) | - |
| Detailed Description | Flyback Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 16-MSOP | Control Features | Enable, Soft Start |
| Clock Sync | No | Base Part Number | LT3748 |
