HMC514LP5ETR

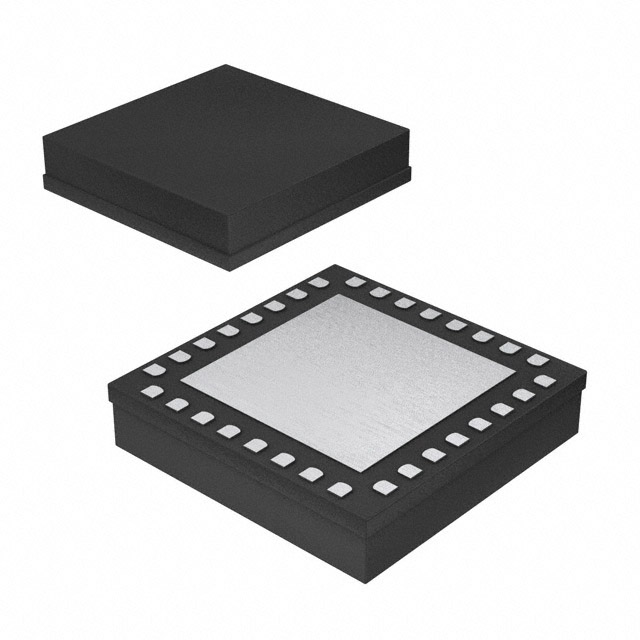

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HMC514LP5ETR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HMC514LP5ETR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HMC514LP5ETR |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | VCO 5.7975GHZ, 11.595GHZ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $9.567 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HMC514LP5ETR | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | VCO 5.7975GHZ, 11.595GHZ | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4029 pcs | Data sheet | HMC514LP5/E |
| Category | Crystals, Oscillators, Resonators | Voltage - Supply | 3V |
| Tuning Voltage (VDC) | 2V ~ 13V | Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Series | - | Pushing (MHz/V) | 18 |
| Power (dBm) | -7±3, 8±3, 7.5±2.5 | Phase Noise Typ (dBc/Hz) | -110 |
| Packaging | Tape & Reel (TR) | Package / Case | 32-VFQFN Exposed Pad, CSP |
| Operating Temperature | -40°C ~ 85°C | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Icc Max | 290mA | Height | 0.039" (1.00mm) |
| Frequency Range | 5.585 ~ 6.01GHz, 11.17 ~ 12.02GHz | Frequency - Center | 5.7975GHz, 11.595GHz |
| Detailed Description | 5.7975GHz, 11.595GHz Center Frequency 2V ~ 13V Voltage Controlled Oscillator -7±3, 8±3, 7.5±2.5 dBm 17 2nd Harmonic, Typ (dBc) | Base Part Number | HMC514 |
| 2nd Harmonic, Typ (dBc) | 17 |
