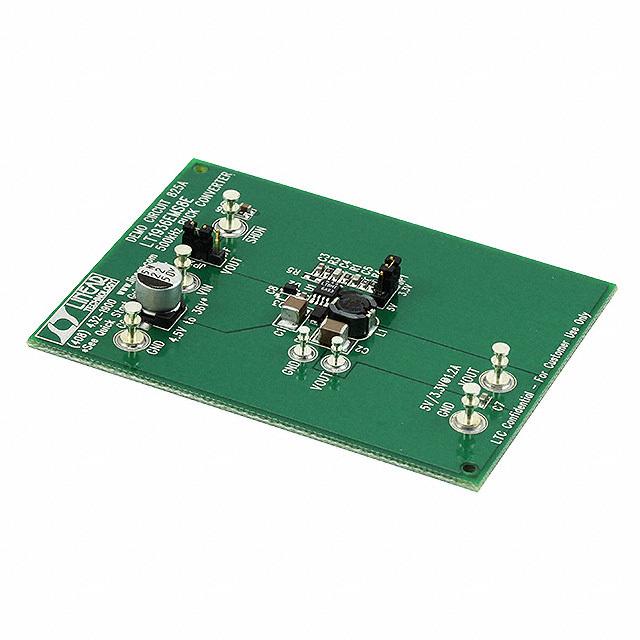

DC825A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DC825A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DC825A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DC825A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | BOARD EVAL FOR LT1936EMS8E |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 100 pcs | |||
|---|---|---|---|---|---|
| $27.628 | $27.222 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DC825A | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | BOARD EVAL FOR LT1936EMS8E | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1230 pcs | Data sheet | DC825A Quick Start GuideLTspice FlyerLTspice IV Getting Started GuideLT1936 Datasheet |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 3.3V or 5V |
| Voltage - Input | 4.5 V ~ 36 V | Utilized IC / Part | LT1936 |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Buck | Outputs and Type | 1, Non-Isolated |
| Other Names | DEMO 825A | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Main Purpose | DC/DC, Step Down |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Switching | 500kHz |
| Detailed Description | LT1936 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board | Current - Output | 1.2A |
| Board Type | Fully Populated | Base Part Number | LT1936 |
