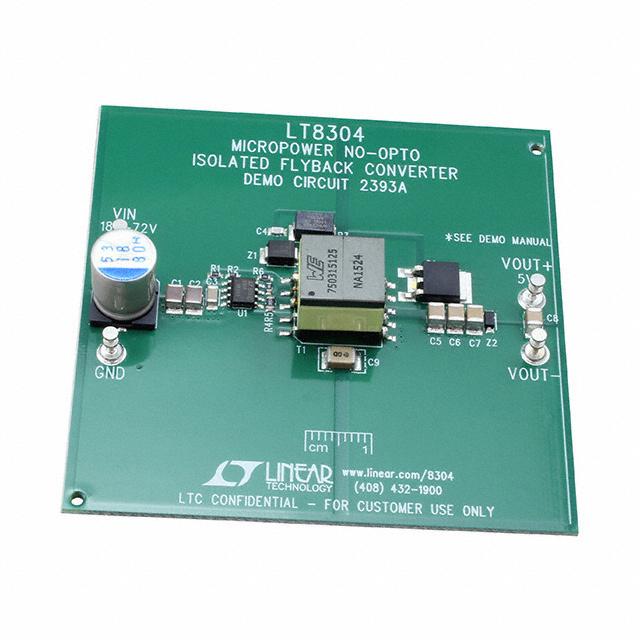

DC2393A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DC2393A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DC2393A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DC2393A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | EVAL BOARD FOR LT8304 |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $55.64 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DC2393A | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | EVAL BOARD FOR LT8304 | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 565 pcs | Data sheet | LT8304 DatasheetMac OS X ShortcutsLTspice FlyerLTspice IV Getting Started GuideDC2393A Demo Manual |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 5V |
| Voltage - Input | 18 V ~ 72 V | Utilized IC / Part | LT8304 |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Flyback | Outputs and Type | 1, Isolated |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Main Purpose | DC/DC Converter | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Frequency - Switching | 11kHz | Detailed Description | LT8304 - DC/DC Converter 1, Isolated Outputs Evaluation Board |
| Current - Output | 4.2A | Board Type | Fully Populated |
| Base Part Number | LT8304 |
