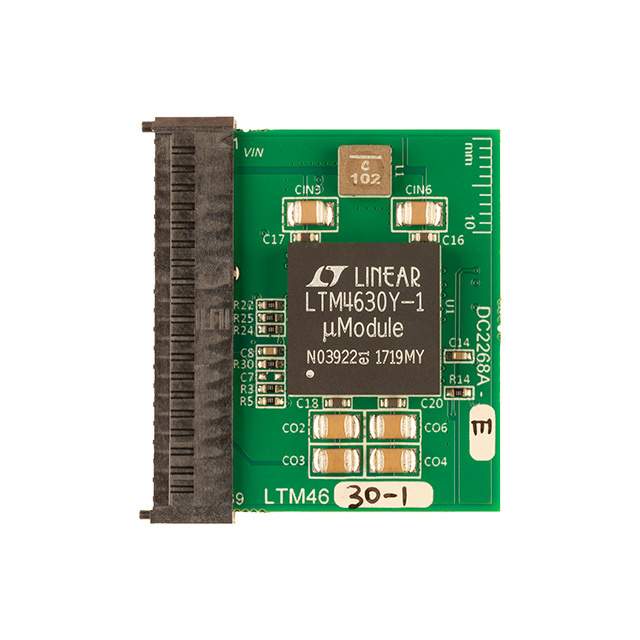

DC2268A-E
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DC2268A-E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DC2268A-E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DC2268A-E |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | EVAL BOARD FOR LTM4630-1 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 100 pcs | |||
|---|---|---|---|---|---|
| $23.406 | $23.062 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DC2268A-E | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | EVAL BOARD FOR LTM4630-1 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1465 pcs | Data sheet | LTspice FlyerLTspice IV Getting Started GuideDC2268A-E Demo ManualLTM4630-1 Datasheet |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 1V, 1.5V |
| Voltage - Input | 4.5 V ~ 15 V | Utilized IC / Part | LTM4630-1 |
| Supplied Contents | Board(s) | Series | µModule® |
| Regulator Topology | Buck | Outputs and Type | 2, Non-Isolated |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Main Purpose | DC/DC, Step Down | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 500kHz | Detailed Description | LTM4630-1 µModule® DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board |
| Current - Output | 18A, 18A | Board Type | Fully Populated |
| Base Part Number | LTM4630 |
