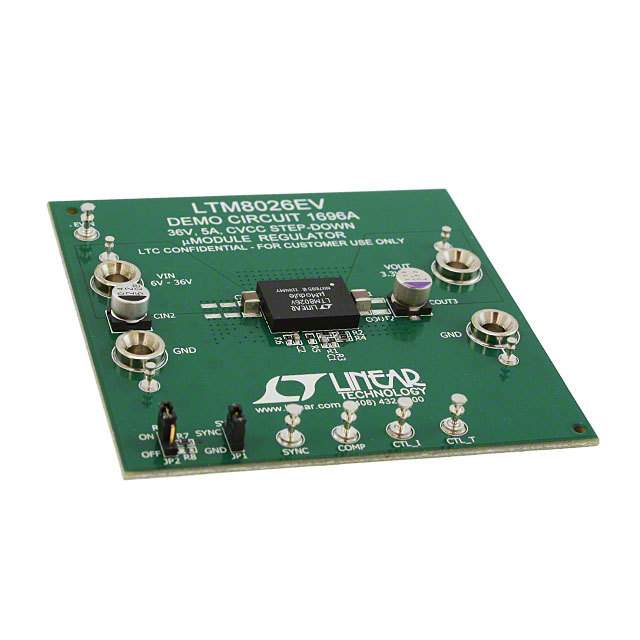

DC1696A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DC1696A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DC1696A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DC1696A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | BOARD DEMO FOR LTM8026 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 100 pcs | |||
|---|---|---|---|---|---|
| $23.549 | $23.203 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DC1696A | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | BOARD DEMO FOR LTM8026 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1396 pcs | Data sheet | DC1696A ManualLTM8026LTspice FlyerLTspice IV Getting Started Guide |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 3.3V |
| Voltage - Input | 6 V ~ 36 V | Utilized IC / Part | LTM8026 |
| Supplied Contents | Board(s) | Series | µModule® |
| Regulator Topology | Buck | Outputs and Type | 1, Non-Isolated |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 8 Weeks |
| Main Purpose | DC/DC, Step Down | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 550kHz | Detailed Description | LTM8026 µModule® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Current - Output | 5A | Board Type | Fully Populated |
| Base Part Number | LTM8026 |
