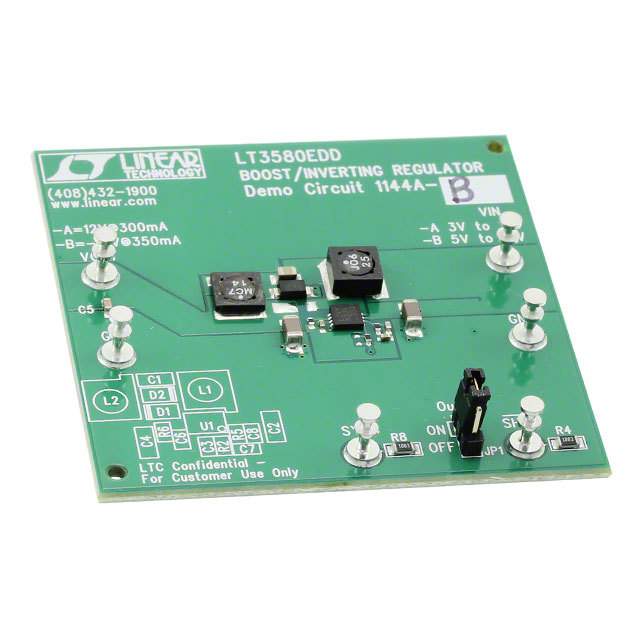

DC1144A-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DC1144A-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DC1144A-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DC1144A-B |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | EVAL BOARD INVERTING REG LT3580 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $54.20 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DC1144A-B | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | EVAL BOARD INVERTING REG LT3580 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 688 pcs | Data sheet | DC1144 Quick Start GuideLT3580 Datasheet |
| Category | Development Boards, Kits, Programmers | Voltage - Output | -12V |
| Voltage - Input | 5 V ~ 12 V | Utilized IC / Part | LT3580 |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Inverting | Outputs and Type | 1, Non-Isolated |
| Other Names | DEMO 1144A-B | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Main Purpose | DC/DC, Negative Inverter |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Switching | 2MHz |
| Detailed Description | LT3580 - DC/DC, Negative Inverter 1, Non-Isolated Outputs Evaluation Board | Current - Output | 350mA |
| Board Type | Fully Populated | Base Part Number | LT3580 |
