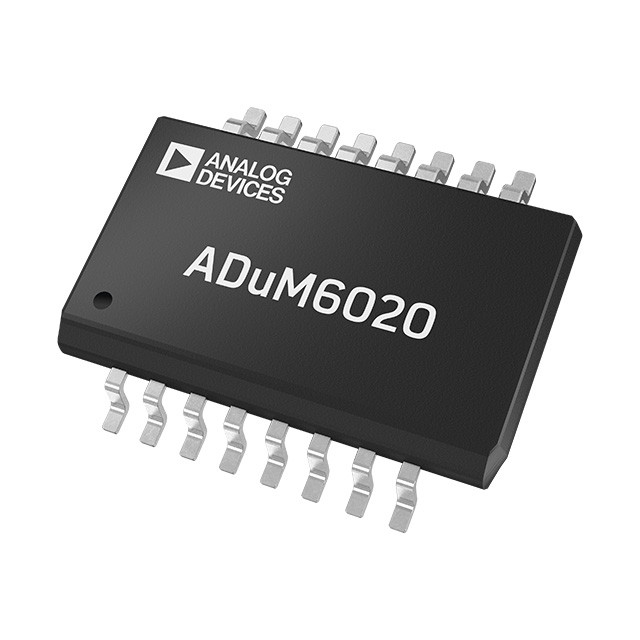

ADUM6020-5BRIZ-RL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADUM6020-5BRIZ-RL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADUM6020-5BRIZ-RL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADUM6020-5BRIZ-RL |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | ISOPOWER 5KV, LOWEMI, 500MW PWR, |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADUM6020-5BRIZ-RL | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | ISOPOWER 5KV, LOWEMI, 500MW PWR, | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 4494 pcs | Data sheet | ADuM6020,28 |
| Category | Power Supplies - Board Mount | Voltage - Output 4 | - |
| Voltage - Output 3 | - | Voltage - Output 2 | - |
| Voltage - Output 1 | 5V, 3.3V | Voltage - Isolation | 5kV |
| Voltage - Input (Min) | 4.5V | Voltage - Input (Max) | 5.5V |
| Type | Isolated Module | Supplier Device Package | 16-SOIC-IC |
| Size / Dimension | 0.50" L x 0.30" W x 0.10" H (12.8mm x 7.5mm x 2.6mm) | Series | IsoPower®, iCoupler® |
| RoHS Status | RoHS Compliant | Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Operating Temperature | -40°C ~ 125°C | Number of Outputs | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 22 Weeks | Features | OTP, UVLO |
| Efficiency | 33% | Detailed Description | Isolated Module DC DC Converter 1 Output 5V, 3.3V 100mA 4.5V - 5.5V Input |
| Current - Output (Max) | 100mA | Applications | ITE (Commercial) |
