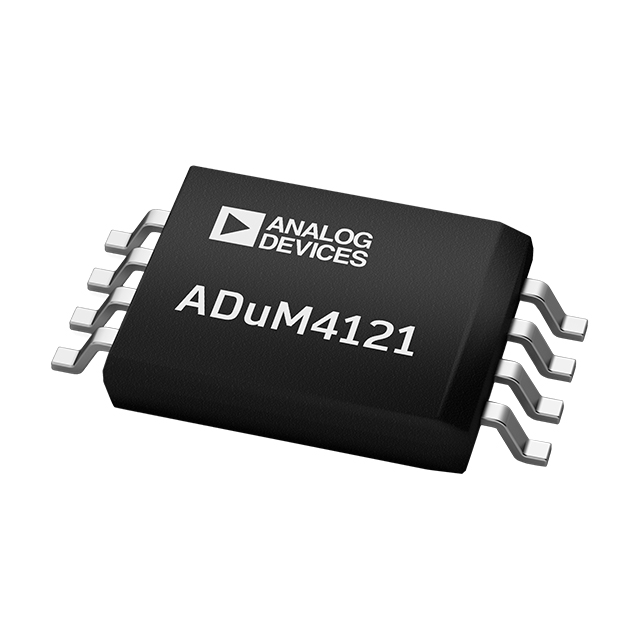

ADUM4121BRIZ-RL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADUM4121BRIZ-RL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADUM4121BRIZ-RL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADUM4121BRIZ-RL |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | DGTL ISO 5KV 1CH GATE DRVR 8SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | ||||
|---|---|---|---|---|---|
| $1.105 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADUM4121BRIZ-RL | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | DGTL ISO 5KV 1CH GATE DRVR 8SOIC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32475 pcs | Data sheet | ADuM4121(-1) |
| Category | Isolators | Voltage - Supply | 7.5 V ~ 35 V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | - |
| Technology | Magnetic Coupling | Supplier Device Package | 8-SOIC-IC |
| Series | iCoupler® | Rise / Fall Time (Typ) | 18ns, 18ns |
| Pulse Width Distortion (Max) | 13ns | Propagation Delay tpLH / tpHL (Max) | 42ns, 53ns |
| Packaging | Tape & Reel (TR) | Package / Case | 8-SOIC (0.295", 7.50mm Width) |
| Operating Temperature | -40°C ~ 125°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 2.3A Gate Driver Magnetic Coupling 5000Vrms 1 Channel 8-SOIC-IC | Current - Peak Output | 2.3A |
| Current - Output High, Low | - | Common Mode Transient Immunity (Min) | 150kV/µs |
| Base Part Number | ADUM4121 | Approvals | CSA, UR, VDE |
