ADP8140ACPZ-2-R7

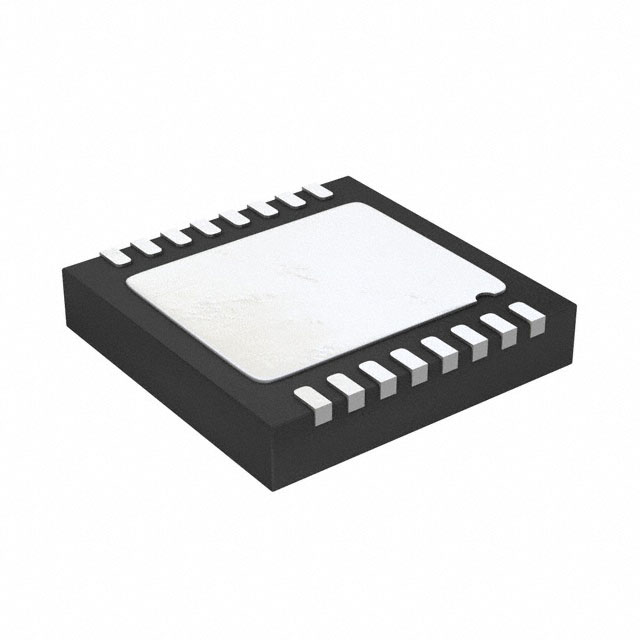

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADP8140ACPZ-2-R7 with confidence from Components-World.HK, 1 Year Warranty
Dowload ADP8140ACPZ-2-R7 Details in PDFSee Product Specifications for product details.
Buy ADP8140ACPZ-2-R7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADP8140ACPZ-2-R7 |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC LED DVR 4CH IND 16LFCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | ||||
|---|---|---|---|---|---|
| $1.913 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADP8140ACPZ-2-R7 | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC LED DVR 4CH IND 16LFCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17208 pcs | Data sheet | ADP8140 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 30V | Voltage - Output | - |
| Type | Linear | Topology | - |
| Supplier Device Package | 16-LFCSP-WD (4x4) | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 16-WFDFN Exposed Pad, CSP |
| Other Names | ADP8140ACPZ-2-R7-ND ADP8140ACPZ-2-R7TR |
Operating Temperature | -40°C ~ 105°C (TA) |
| Number of Outputs | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | - |
| Frequency | - | Dimming | Analog, PWM |
| Detailed Description | LED Driver IC 4 Output Linear Analog, PWM Dimming 500mA 16-LFCSP-WD (4x4) | Current - Output / Channel | 500mA |
| Base Part Number | ADP8140 | Applications | Backlight, Lighting |
