Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > ADP2300-EVALZ

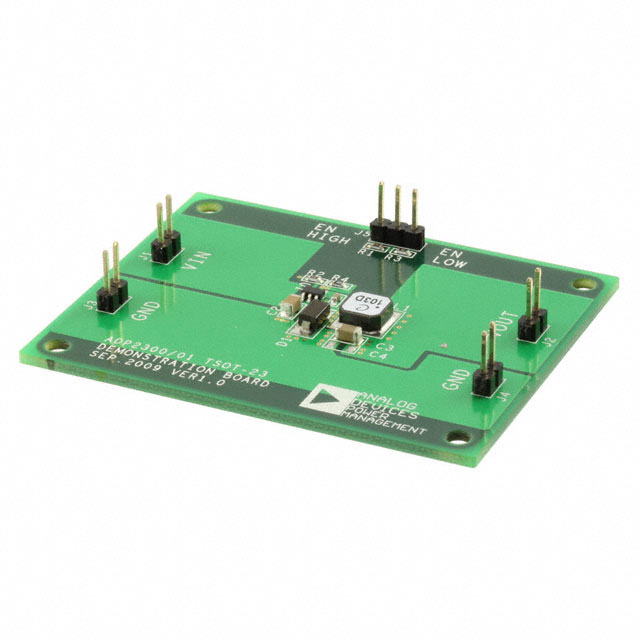

ADP2300-EVALZ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADP2300-EVALZ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ADP2300-EVALZ
Manufacturer	ADI (Analog Devices, Inc.)
Description	BOARD EVALUATION FOR ADP2300
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1265 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$26.666

Product parameter
Data sheet

Product parameter

Part Number	ADP2300-EVALZ	Manufacturer	ADI (Analog Devices, Inc.)
Description	BOARD EVALUATION FOR ADP2300	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1265 pcs	Data sheet	ADP2300,01 ADP2300/01 Eval Brd Guide
Category	Development Boards, Kits, Programmers	Voltage - Output	3.3V
Voltage - Input	3 V ~ 20 V	Utilized IC / Part	ADP2300
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Other Names	ADP2300EVALZ	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	700kHz	Detailed Description	ADP2300 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	1.2A	Board Type	Fully Populated
Base Part Number	ADP2300
