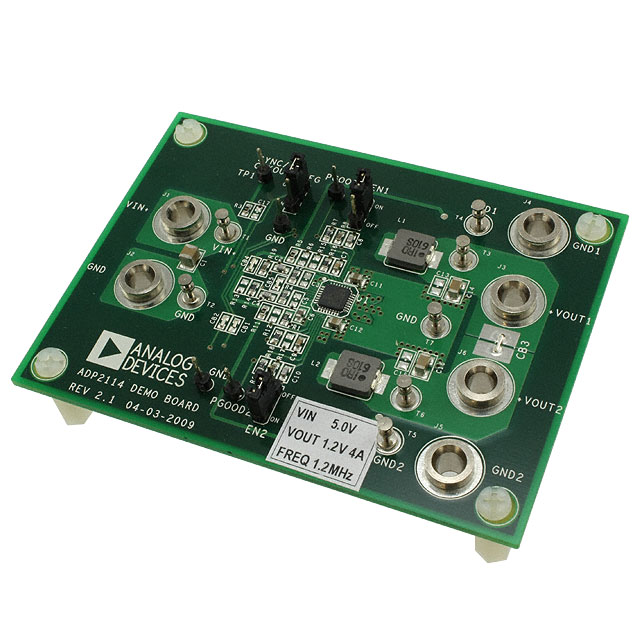

ADP2114-2PH-EVALZ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADP2114-2PH-EVALZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADP2114-2PH-EVALZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADP2114-2PH-EVALZ |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | BOARD EVALUATION 1.2V 4A 1.2MHZ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $27.757 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADP2114-2PH-EVALZ | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | BOARD EVALUATION 1.2V 4A 1.2MHZ | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1083 pcs | Data sheet | EVAL-ADP2114ADP2114 |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 0.6 V ~ 3.3 V |
| Voltage - Input | 2.75 V ~ 5.5 V | Utilized IC / Part | ADP2114 |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Buck | Outputs and Type | 1, Non-Isolated |
| Other Names | ADP21142PHEVALZ | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Main Purpose | DC/DC, Step Down | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 300kHz, 600kHz, 1.2MHz | Detailed Description | ADP2114 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Current - Output | 4A | Board Type | Fully Populated |
| Base Part Number | ADP2114 |
