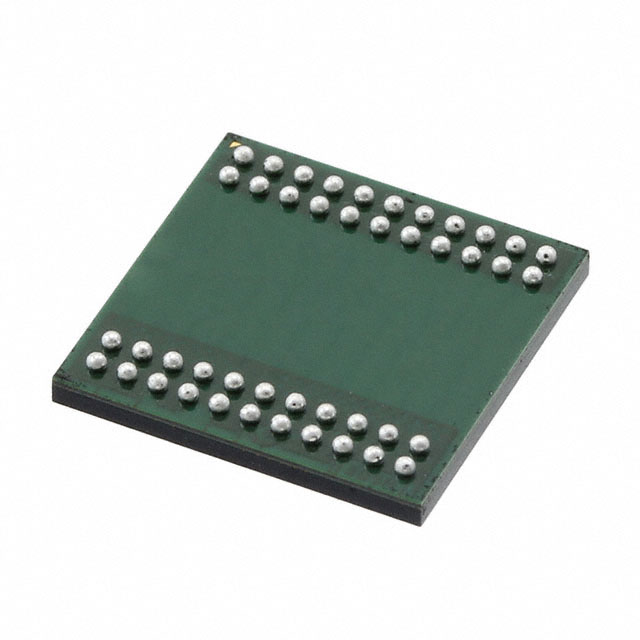

ADM3252EABCZ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADM3252EABCZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADM3252EABCZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADM3252EABCZ |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | DGTL ISO 2.5KV 4CH RS232 44BGA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 189 pcs | ||
|---|---|---|---|---|---|
| $7.154 | $6.574 | $5.552 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADM3252EABCZ | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | DGTL ISO 2.5KV 4CH RS232 44BGA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5635 pcs | Data sheet | ADM3252E |
| Category | Isolators | Voltage - Supply | 3 V ~ 5.5 V |
| Voltage - Isolation | 2500Vrms | Type | RS232 |
| Technology | Magnetic Coupling | Supplier Device Package | 44-CSPBGA (12x12) |
| Series | IsoPower®, iCoupler® | Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Pulse Width Distortion (Max) | - | Propagation Delay tpLH / tpHL (Max) | - |
| Packaging | Tray | Package / Case | 44-LFBGA, CSPBGA |
| Operating Temperature | -40°C ~ 85°C | Number of Channels | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Isolated Power | Yes | Inputs - Side 1/Side 2 | 2/2 |
| Detailed Description | RS232 Digital Isolator 2500Vrms 4 Channel 460Kbps 25kV/µs CMTI 44-LFBGA, CSPBGA | Data Rate | 460Kbps |
| Common Mode Transient Immunity (Min) | 25kV/µs | Channel Type | Unidirectional |
| Base Part Number | ADM3252 |
