Home > Products > Integrated Circuits (ICs) > Interface - Drivers, Receivers, Transceivers > ADM242ANZ

ADM242ANZ

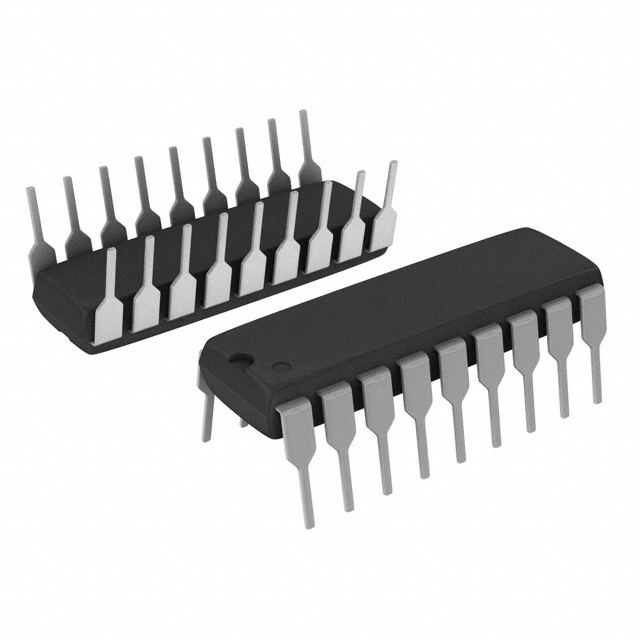

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADM242ANZ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ADM242ANZ
Manufacturer	ADI (Analog Devices, Inc.)
Description	IC TXRX RS232 W/EN/SD 18DIP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 30745 pcs
Reference Price (In US Dollars)	1 pcs	20 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$1.994	$1.79	$1.467	$1.249	$1.053

Product parameter
Data sheet

Product parameter

Part Number	ADM242ANZ	Manufacturer	ADI (Analog Devices, Inc.)
Description	IC TXRX RS232 W/EN/SD 18DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30745 pcs	Data sheet	ADM222,232,242
Category	Integrated Circuits (ICs)	Voltage - Supply	4.5 V ~ 5.5 V
Type	Transceiver	Supplier Device Package	18-PDIP
Series	-	Receiver Hysteresis	400mV
Protocol	RS232	Packaging	Tube
Package / Case	18-DIP (0.300", 7.62mm)	Operating Temperature	-40°C ~ 85°C
Number of Drivers/Receivers	2/2	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Duplex	Full
Detailed Description	2/2 Transceiver Full RS232 18-PDIP	Data Rate	200kbps
Base Part Number	ADM242
