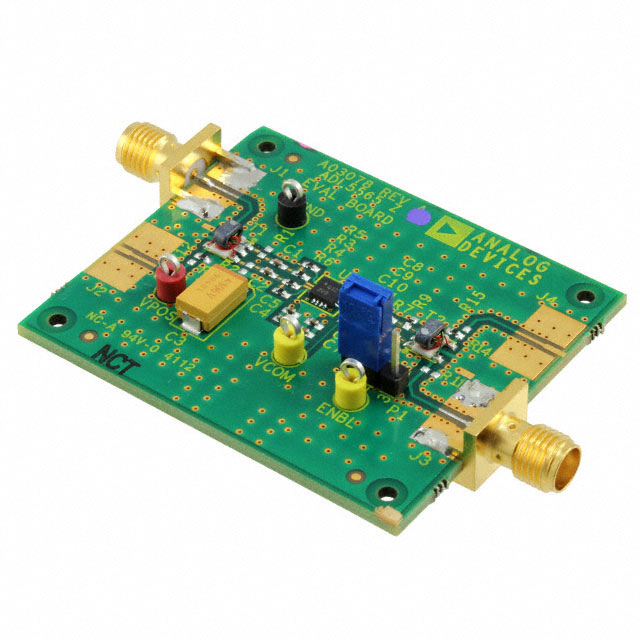

ADL5565-EVALZ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADL5565-EVALZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADL5565-EVALZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADL5565-EVALZ |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | EVAL BOARD DIFF AMP ADL5565 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $66.798 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADL5565-EVALZ | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | EVAL BOARD DIFF AMP ADL5565 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 473 pcs | Data sheet | ADL5565 |
| Category | Development Boards, Kits, Programmers | Voltage - Supply, Single/Dual (±) | 2.8 V ~ 5.2 V |
| Utilized IC / Part | ADL5565 | Supplied Contents | Board(s) |
| Slew Rate | 11 V/µs | Series | - |
| Output Type | Differential | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | ADL5565 1 - Single Channels per IC Differential Amplifier Evaluation Board |
| Current - Supply (Main IC) | 80mA | Current - Output / Channel | 30mA |
| Channels per IC | 1 - Single | Board Type | Fully Populated |
| Base Part Number | ADL5565 | Amplifier Type | Differential |
| -3db Bandwidth | 7GHz |
