ADL5536ARKZ-R7

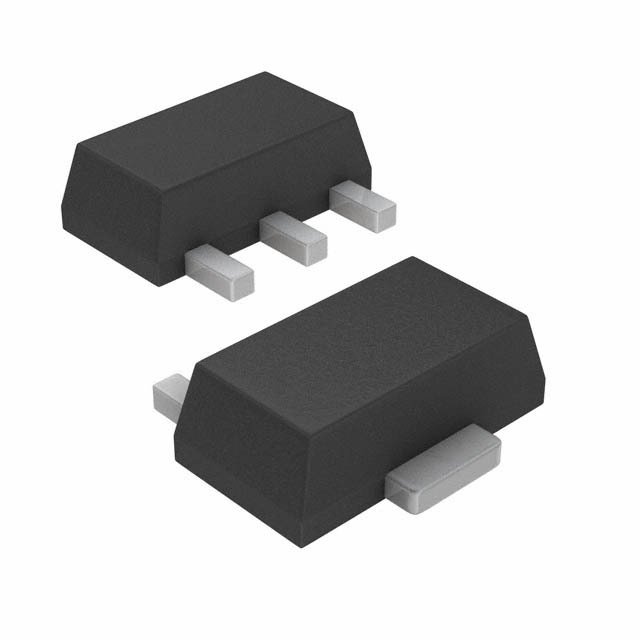

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADL5536ARKZ-R7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADL5536ARKZ-R7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADL5536ARKZ-R7 |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC RF AMP GP 20MHZ-1GHZ SOT89-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | |||
|---|---|---|---|---|---|
| $0.876 | $0.832 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADL5536ARKZ-R7 | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC RF AMP GP 20MHZ-1GHZ SOT89-3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44120 pcs | Data sheet | ADL5536 |
| Category | RF/IF and RFID | Voltage - Supply | 4.5 V ~ 5.5 V |
| Test Frequency | 380MHz | Supplier Device Package | SOT-89-3 |
| Series | - | RF Type | General Purpose |
| Packaging | Tape & Reel (TR) | Package / Case | TO-243AA |
| P1dB | 19.7dBm | Other Names | ADL5536ARKZ-R7-ND ADL5536ARKZ-R7TR ADL5536ARKZR7 |
| Noise Figure | 2.7dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 19 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gain | 19.4dB | Frequency | 20MHz ~ 1GHz |
| Detailed Description | RF Amplifier IC General Purpose 20MHz ~ 1GHz SOT-89-3 | Current - Supply | 105mA |
| Base Part Number | ADL5536 |
