ADG836YCPZ-REEL

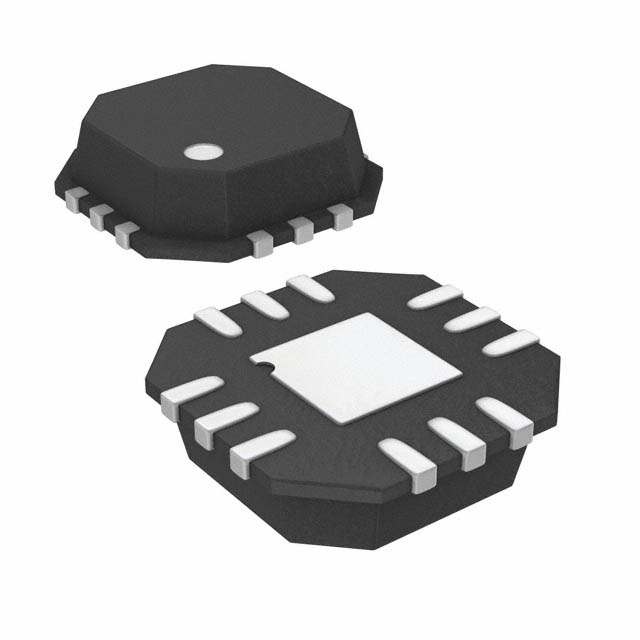

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADG836YCPZ-REEL with confidence from Components-World.HK, 1 Year Warranty
Dowload ADG836YCPZ-REEL Details in PDFSee Product Specifications for product details.
Buy ADG836YCPZ-REEL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADG836YCPZ-REEL |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC SWITCH DUAL SPDT 12LFCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADG836YCPZ-REEL | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC SWITCH DUAL SPDT 12LFCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5947 pcs | Data sheet | ADG836 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 1.65 V ~ 3.6 V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 26ns, 7ns |
| Switch Circuit | SPDT | Supplier Device Package | 12-LFCSP-VQ (3x3) |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFQFN Exposed Pad, CSP | Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 650 mOhm | Number of Circuits | 2 |
| Multiplexer/Demultiplexer Circuit | 2:1 | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 2 Circuit IC Switch 2:1 650 mOhm 12-LFCSP-VQ (3x3) |
| Current - Leakage (IS(off)) (Max) | 200pA (Typ) | Crosstalk | -90dB @ 100kHz |
| Charge Injection | 40pC | Channel-to-Channel Matching (ΔRon) | 40 mOhm |
| Channel Capacitance (CS(off), CD(off)) | 25pF | Base Part Number | ADG836 |
| -3db Bandwidth | 57MHz |
