ADCMP563BCPZ-RL7

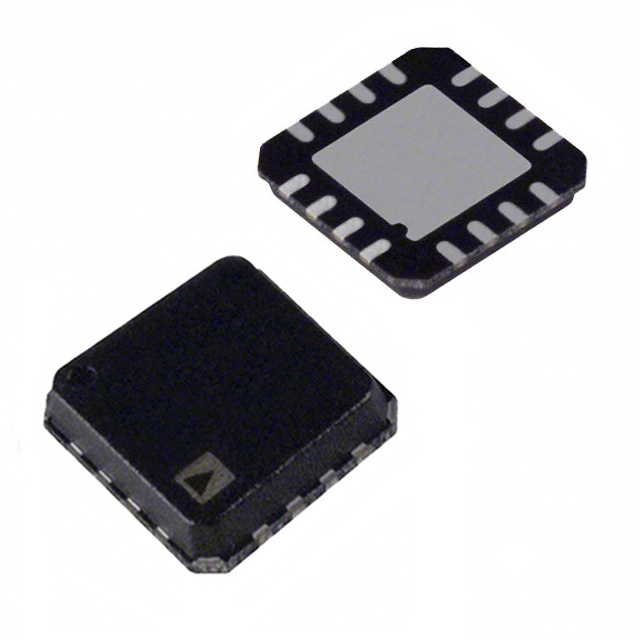

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADCMP563BCPZ-RL7 with confidence from Components-World.HK, 1 Year Warranty
Dowload ADCMP563BCPZ-RL7 Details in PDFSee Product Specifications for product details.
Buy ADCMP563BCPZ-RL7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADCMP563BCPZ-RL7 |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC COMPARATOR ECL DUAL 16LFCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | ||||
|---|---|---|---|---|---|
| $1.338 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADCMP563BCPZ-RL7 | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC COMPARATOR ECL DUAL 16LFCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23787 pcs | Data sheet | ADCMP563,564 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single/Dual (±) | ±4.75 V ~ 5.25 V |
| Voltage - Input Offset (Max) | 10mV @ 5V | Type | with Latch |
| Supplier Device Package | 16-LFCSP-WQ (3x3) | Series | - |
| Package / Case | 16-WFQFN Exposed Pad, CSP | Output Type | Complementary, Differential, ECL, Open-Emitter |
| Operating Temperature | -40°C ~ 85°C | Number of Elements | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Hysteresis | ±1mV | Detailed Description | Comparator with Latch Complementary, Differential, ECL, Open-Emitter 16-LFCSP-WQ (3x3) |
| Current - Quiescent (Max) | 5mA | Current - Output (Typ) | - |
| Current - Input Bias (Max) | 10µA @ 5V | CMRR, PSRR (Typ) | 80dB CMRR, 85dB PSRR |
| Base Part Number | ADCMP563 |
