AD9689BBPZ-2000

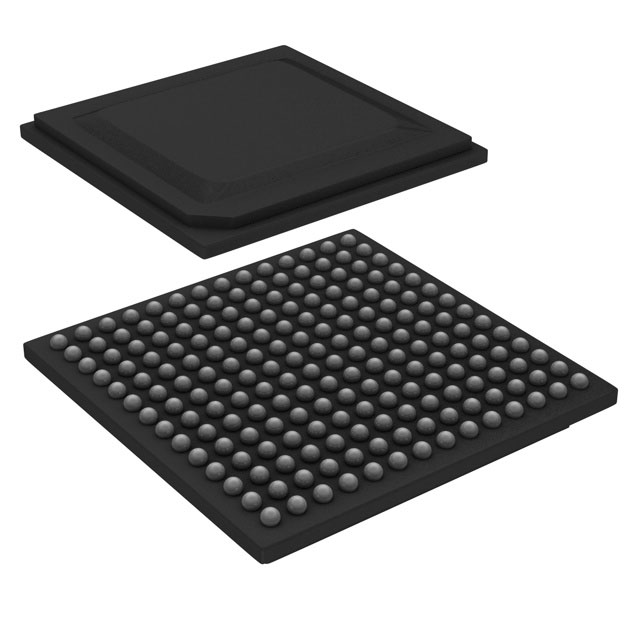

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AD9689BBPZ-2000 with confidence from Components-World.HK, 1 Year Warranty
Dowload AD9689BBPZ-2000 Details in PDFSee Product Specifications for product details.
Buy AD9689BBPZ-2000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AD9689BBPZ-2000 |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | DUAL 14 BIT 2.0GSPS ADC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $447.885 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AD9689BBPZ-2000 | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | DUAL 14 BIT 2.0GSPS ADC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71 pcs | Data sheet | AD9689 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Digital | 0.95V ~ 1V, 1.85V ~ 1.95V |
| Voltage - Supply, Analog | 0.95V ~ 1V, 1.85V ~ 1.95V, 2.44V ~ 2.56V | Supplier Device Package | 196-BGA-ED (12x12) |
| Series | - | Sampling Rate (Per Second) | 2G |
| Reference Type | External, Internal | Ratio - S/H:ADC | 1:1 |
| Package / Case | 196-LFBGA | Operating Temperature | -40°C ~ 85°C |
| Number of Inputs | 2 | Number of Bits | 14 |
| Number of A/D Converters | 2 | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Differential | Detailed Description | 14 Bit Analog to Digital Converter 2 Input 2 Pipelined 196-BGA-ED (12x12) |
| Data Interface | JESD204B | Configuration | S/H-ADC |
| Base Part Number | AD9689 | Architecture | Pipelined |
