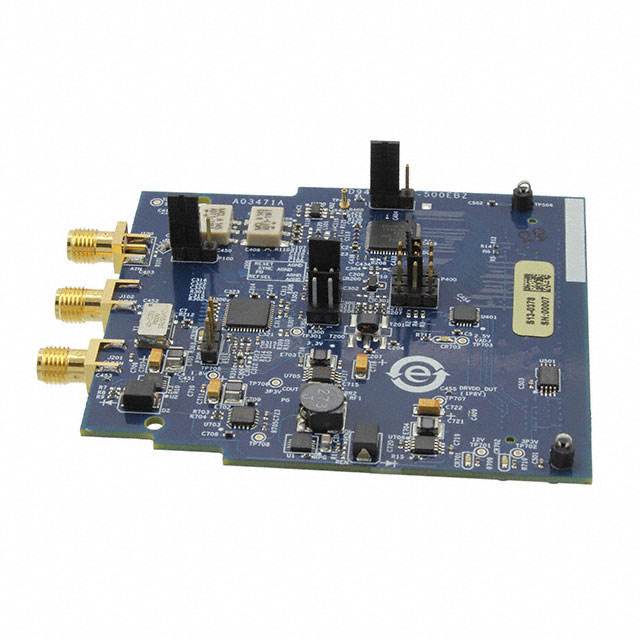

AD9434-FMC-500EBZ

AD9434-FMC-500EBZ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AD9434-FMC-500EBZ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AD9434-FMC-500EBZ
Manufacturer	ADI (Analog Devices, Inc.)
Description	EVAL BOARD 12BIT 500M ADC AD9434
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 209 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$152.129

Product parameter
Data sheet

Product parameter

Part Number	AD9434-FMC-500EBZ	Manufacturer	ADI (Analog Devices, Inc.)
Description	EVAL BOARD 12BIT 500M ADC AD9434	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	209 pcs	Data sheet	AD9434/84 Eval Brd Guide AD9434
Category	Development Boards, Kits, Programmers	Utilized IC / Part	AD9434
Supplied Contents	Board(s)	Series	-
Sampling Rate (Per Second)	500M	Power (Typ) @ Conditions	690mW @ 500MSPS
Number of Bits	12	Number of A/D Converters	1
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Range	1.5 Vpp	Detailed Description	AD9434 - 12 Bit 500M Samples per Second Analog to Digital Converter (ADC) Evaluation Board
Data Interface	SPI	Base Part Number	AD9434
