Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - Op Amps > AD8222-EVALZ

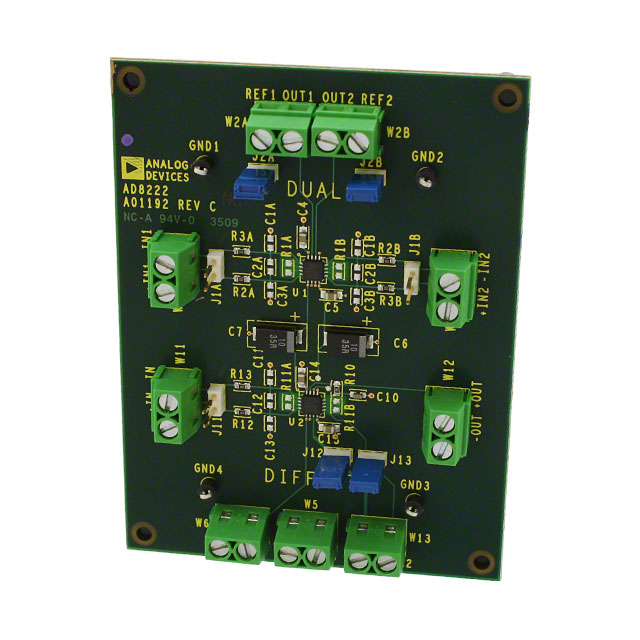

AD8222-EVALZ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AD8222-EVALZ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AD8222-EVALZ
Manufacturer	ADI (Analog Devices, Inc.)
Description	BOARD EVALUATION FOR AD8222
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1622 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$23.731

Product parameter
Data sheet

Product parameter

Part Number	AD8222-EVALZ	Manufacturer	ADI (Analog Devices, Inc.)
Description	BOARD EVALUATION FOR AD8222	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1622 pcs	Data sheet	AD8222-EVALZ AD8222
Category	Development Boards, Kits, Programmers	Voltage - Supply, Single/Dual (±)	4.6 V ~ 36 V, ±2.3 V ~ 18 V
Utilized IC / Part	AD8222	Supplied Contents	Board(s)
Slew Rate	2 V/µs	Series	-
Output Type	-	Other Names	AD8222EVALZ
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	AD8222 2 - Dual Channels per IC Instrumentation Amplifier Evaluation Board	Current - Supply (Main IC)	900µA
Current - Output / Channel	18mA	Channels per IC	2 - Dual
Board Type	Fully Populated	Base Part Number	AD8222
Amplifier Type	Instrumentation	-3db Bandwidth	1.2MHz
