AD5821ABCBZ-REEL7

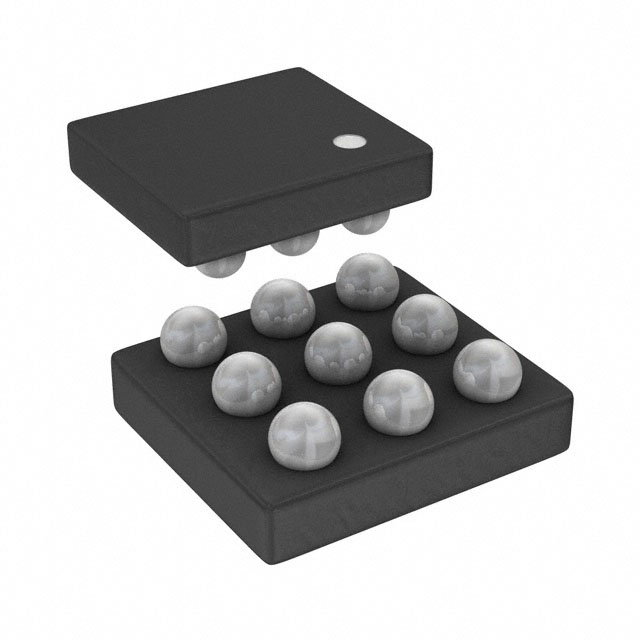

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AD5821ABCBZ-REEL7 with confidence from Components-World.HK, 1 Year Warranty
Dowload AD5821ABCBZ-REEL7 Details in PDFSee Product Specifications for product details.
Buy AD5821ABCBZ-REEL7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AD5821ABCBZ-REEL7 |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC DAC 10BIT CURRENTSINK 9-WLCSP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.841 | $0.756 | $0.607 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AD5821ABCBZ-REEL7 | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC DAC 10BIT CURRENTSINK 9-WLCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63469 pcs | Data sheet | AD5821A |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Digital | 2.7 V ~ 5.5 V |
| Voltage - Supply, Analog | 2.7 V ~ 5.5 V | Supplier Device Package | 9-WLCSP (1.52 x 1.69) |
| Settling Time | 250µs (Typ) | Series | - |
| Reference Type | Internal | Packaging | Original-Reel® |
| Package / Case | 9-UFBGA, WLCSP | Output Type | Current - Buffered |
| Other Names | AD5821ABCBZ-REEL7DKR | Operating Temperature | -40°C ~ 85°C |
| Number of D/A Converters | 1 | Number of Bits | 10 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| INL/DNL (LSB) | ±1.5, ±1 (Max) | Differential Output | No |
| Detailed Description | 10 Bit Digital to Analog Converter 1 9-WLCSP (1.52 x 1.69) | Data Interface | I²C |
| Base Part Number | AD5821 | Architecture | Current Sink |
