AD261BND-3

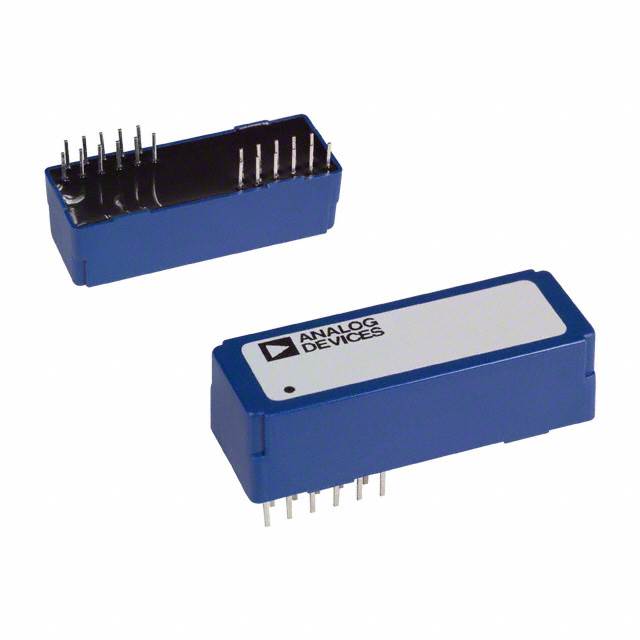

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AD261BND-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AD261BND-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AD261BND-3 |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | DGTL ISO 3.5KV GEN PURP 22DIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $28.594 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AD261BND-3 | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | DGTL ISO 3.5KV GEN PURP 22DIP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1199 pcs | Data sheet | AD261 |
| Category | Isolators | Voltage - Supply | 4 V ~ 5.75 V |
| Voltage - Isolation | 3500Vrms | Type | General Purpose |
| Technology | Magnetic Coupling | Supplier Device Package | 22-PDIP |
| Series | IsoLogic™ | Rise / Fall Time (Typ) | - |
| Pulse Width Distortion (Max) | - | Propagation Delay tpLH / tpHL (Max) | 25ns, 25ns |
| Packaging | Tube | Package / Case | 22-DIP Module |
| Operating Temperature | -25°C ~ 85°C | Number of Channels | 5 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Isolated Power | No |
| Inputs - Side 1/Side 2 | 3/2 | Detailed Description | General Purpose Digital Isolator 3500Vrms 5 Channel 10kV/µs CMTI 22-DIP Module |
| Data Rate | - | Common Mode Transient Immunity (Min) | 10kV/µs |
| Channel Type | Unidirectional | Base Part Number | AD261 |
