Home > Products > Connectors, Interconnects > Rectangular Connectors - Arrays, Edge Type, Mezzan > PK5-160S-CLT-2-GGF

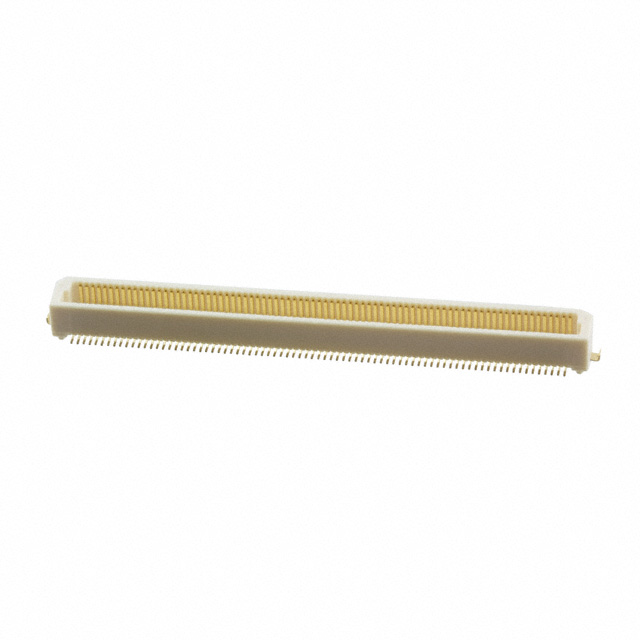

PK5-160S-CLT-2-GGF

PK5-160S-CLT-2-GGF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PK5-160S-CLT-2-GGF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PK5-160S-CLT-2-GGF
Manufacturer	3M
Description	CONN SOCKET 160POS .5MM SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5414 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	PK5-160S-CLT-2-GGF	Manufacturer	3M
Description	CONN SOCKET 160POS .5MM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5414 pcs	Data sheet	PK5 Series Socket
Category	Connectors, Interconnects	Series	Pak 5, PK5
Pitch	0.020" (0.50mm)	Packaging	Tape & Reel (TR)
Other Names	0-00-48011-46872-3 15020211007	Number of Rows	2
Number of Positions	160	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mated Stacking Heights	4mm, 6mm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.120" (3.05mm)
Features	Board Guide, Solder Retention	Detailed Description	160 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Contact Finish Thickness	2.00µin (0.051µm)	Contact Finish	Gold
Connector Type	Socket, Outer Shroud Contacts
