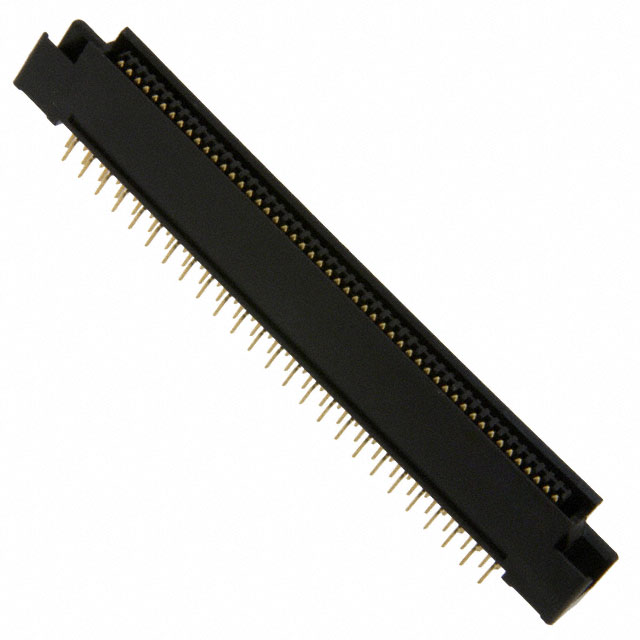

P50E-100P1-S1-EA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P50E-100P1-S1-EA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy P50E-100P1-S1-EA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | P50E-100P1-S1-EA |
|---|---|
| Manufacturer | 3M |
| Description | CONN PLUG 100POS STR .050" GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.355 | $3.211 | $2.919 | $2.773 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.70 | $2.408 | $2.262 | $1.999 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | P50E-100P1-S1-EA | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN PLUG 100POS STR .050" GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17368 pcs | Data sheet | Interconnect CatalogP50E Series |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Pak 50, P50E |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 00051111739716 3M11989 5111173971 51111739716 7010303666 80000906729 P50E-100P1-S1-EA-ND P50E100P1S1EA |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 100 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.421" (10.70mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 100 position 0.050" (1.27mm) |
| Current Rating | 0.5A | Contact Type | Center Strip Contact |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Plug | Applications | - |
