P50E-020P1-RR1-TG

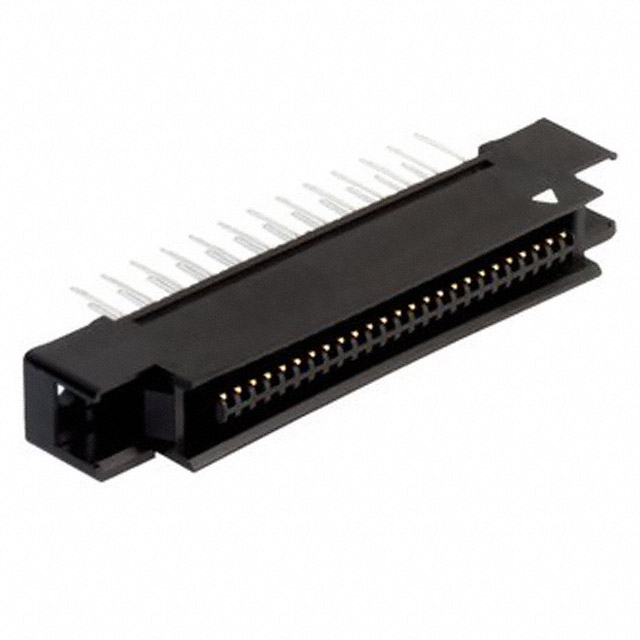

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P50E-020P1-RR1-TG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy P50E-020P1-RR1-TG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | P50E-020P1-RR1-TG |
|---|---|
| Manufacturer | 3M |
| Description | CONN PLUG 20POS R/A .050" GOL |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | P50E-020P1-RR1-TG | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN PLUG 20POS R/A .050" GOL | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4866 pcs | Data sheet | Interconnect Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Pak 50, P50E |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 04801146809 15001557006 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | Insulation Height | 0.276" (7.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Retention Clips | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.050" (1.27mm) | Current Rating | 0.5A |
| Contact Type | Center Strip Contact | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin Alloy |
| Contact Finish - Mating | Gold | Connector Type | Plug |
| Applications | - |
