N4640-2300RB

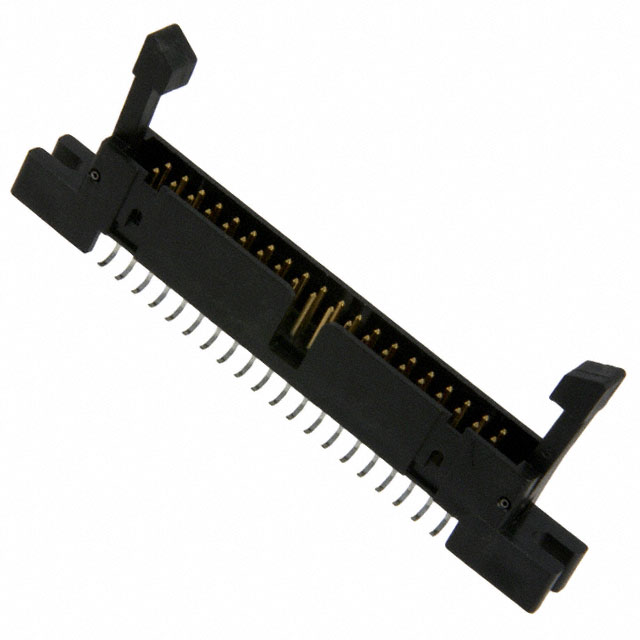

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy N4640-2300RB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy N4640-2300RB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | N4640-2300RB |
|---|---|
| Manufacturer | 3M |
| Description | 40/HDR/SMT/STR/LL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 300 pcs | ||||
|---|---|---|---|---|---|
| $9.801 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | N4640-2300RB | Manufacturer | 3M |
|---|---|---|---|
| Description | 40/HDR/SMT/STR/LL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3944 pcs | Data sheet | Interconnect CatalogN4600 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | N4600 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0-00-51111-66013-3 7010318568 80-0009-0289-2 80000902892 N4640-2300-RB N46402300RB |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height | 0.525" (13.34mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Latch Lock/Eject Hooks, Long | Detailed Description | Connector Header Surface Mount 40 position 0.100" (2.54mm) |
| Current Rating | 1.25A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.243" (6.17mm) |
| Contact Finish Thickness - Post | 300.0µin (7.62µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
