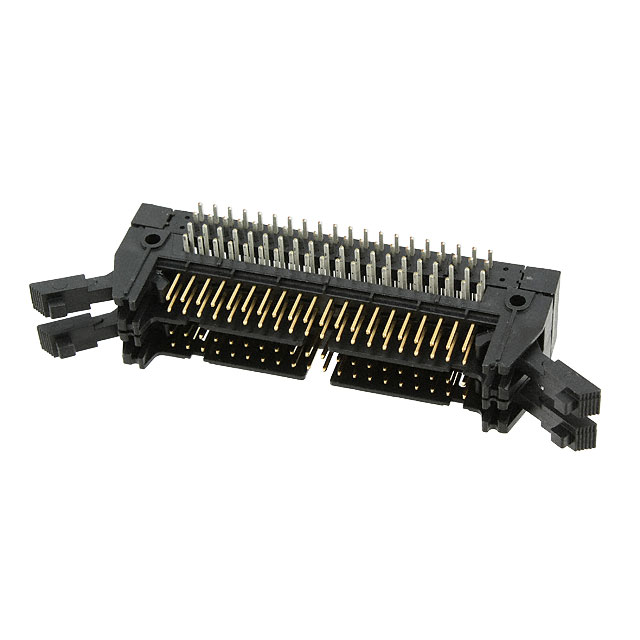

N3432-D302RB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy N3432-D302RB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy N3432-D302RB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | N3432-D302RB |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 80POS R/A .100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | N3432-D302RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 80POS R/A .100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5534 pcs | Data sheet | Interconnect Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 3 Wall | Series | 3000 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0-00-51111-64942-8 3M15351 5111164942 51111649428 80400032423 N3432-D302RB-ND N3432D302RB |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40, 40 | Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height | 0.660" (16.76mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Latch Lock/Eject Hooks, Long | Detailed Description | Connector Header Through Hole, Right Angle 40, 40 position 0.100" (2.54mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.112" (2.84mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header, Stackable (2) | Applications | - |
