N2540-6003-UG
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy N2540-6003-UG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy N2540-6003-UG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote

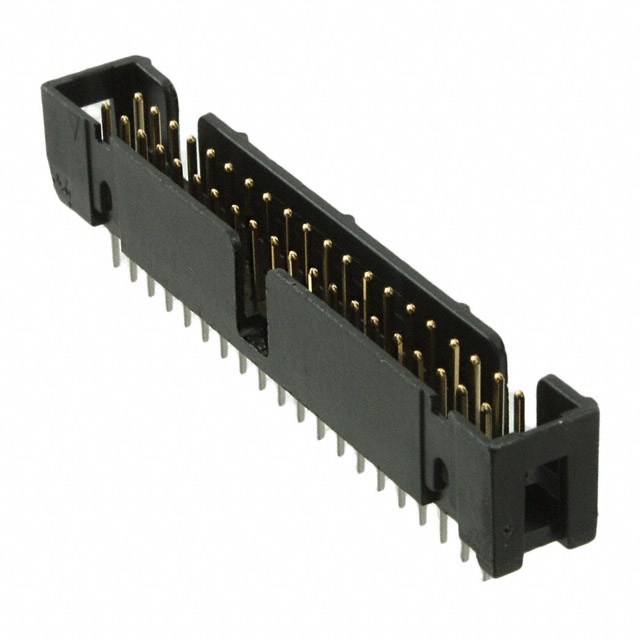

| Part Number | N2540-6003-UG |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 40POS STR GOLD T/H |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | N2540-6003-UG | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 40POS STR GOLD T/H | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4359 pcs | Data sheet | Interconnect Catalog2500 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | 2500 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 05113860306 80610523955 N2540-6003UG N2540-6003UG-ND |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled | Insulation Height | 0.390" (9.91mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 40 position 0.100" (2.54mm) | Current Rating | 1.75A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.155" (3.94mm) |
| Contact Length - Mating | 0.243" (6.17mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
