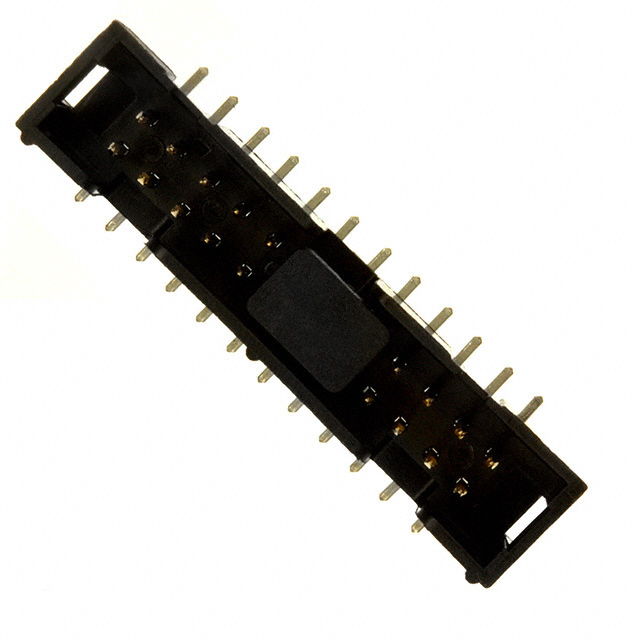

N2524-6V0C-RB-WE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy N2524-6V0C-RB-WE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy N2524-6V0C-RB-WE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | N2524-6V0C-RB-WE |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 24POS SMT VERT 30AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.62 | $1.555 | $1.296 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | N2524-6V0C-RB-WE | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 24POS SMT VERT 30AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25030 pcs | Data sheet | Interconnect Catalog2500 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | 2500 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | MSH24KCT | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Insulation Height | 0.390" (9.91mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot, Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 24 position 0.100" (2.54mm) | Current Rating | 1.75A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.243" (6.17mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
