N10236-52B2PC

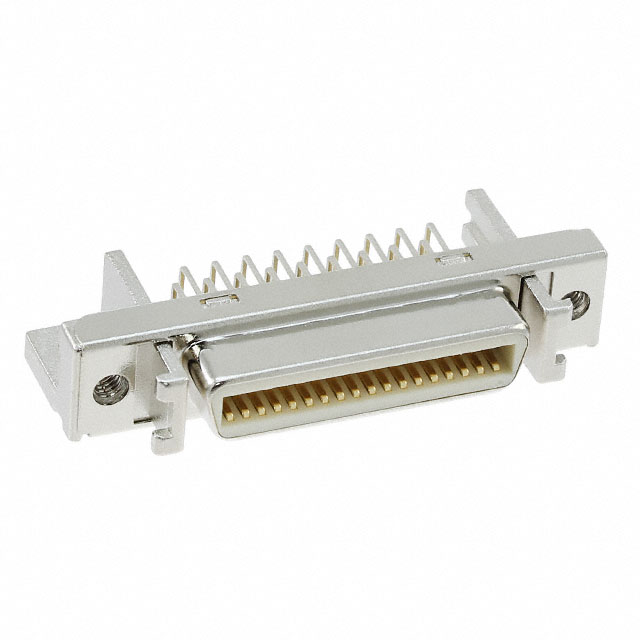

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy N10236-52B2PC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy N10236-52B2PC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | N10236-52B2PC |
|---|---|
| Manufacturer | 3M |
| Description | CONN MINI-D 36POS R/A RECPT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.275 | $3.134 | $2.849 | $2.706 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.635 | $2.35 | $2.208 | $1.951 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | N10236-52B2PC | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN MINI-D 36POS R/A RECPT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18931 pcs | Data sheet | Interconnect CatalogMDR Series Qualification ReportN102XX-52XXPC Series Datasheet |
| Category | Connectors, Interconnects | Type | - |
| Termination | Solder | Series | 102, Mini D Ribbon (MDR) |
| Other Names | 3M155875 4547452407767 54745240776 7000027630 JE150333415 N10236-52B2PC-ND N1023652B2PC |
Number of Rows | 2 |
| Number of Positions | 36 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Flange Feature | Insert, Threaded (M2.5); Latchblocks |
| Features | Board Lock, Shielded | Detailed Description | 36 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle | Connector Style | Outer Shroud Contacts |
