Home > Products > Connectors, Interconnects > Backplane Connectors - Hard Metric, Standard > HSHM-S095B1-5AP1-TG30

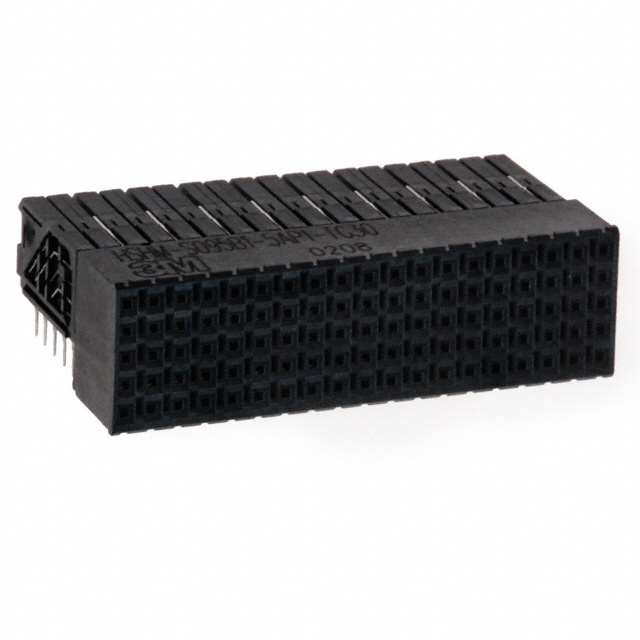

HSHM-S095B1-5AP1-TG30

HSHM-S095B1-5AP1-TG30

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HSHM-S095B1-5AP1-TG30 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	HSHM-S095B1-5AP1-TG30
Manufacturer	3M
Description	CONN SOCKET 5ROW 2MM HSHM GOLD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4779 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	HSHM-S095B1-5AP1-TG30	Manufacturer	3M
Description	CONN SOCKET 5ROW 2MM HSHM GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4779 pcs	Data sheet	HSHM Tech Overview_Backplane System Upgrade HSHM Series
Category	Connectors, Interconnects	Voltage Rating	-
Termination	Press-Fit	Series	MetPak™ HSHM
Pitch	0.079" (2.00mm)	Packaging	Tube
Other Names	0-0-51115-30662-4 3M5655 5111530662 51115306624 70-0100-1136-2 70010011362 70010024712 HSHMS095B15AP1TG30	Operating Temperature	-55°C ~ 125°C
Number of Rows	5	Number of Positions Loaded	All
Number of Positions	95	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Detailed Description	95 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
Current Rating	1A	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Connector Usage	Backplane
Connector Type	Receptacle, Female Sockets	Connector Style	B 19
