Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > D3627-5302-AR

D3627-5302-AR

D3627-5302-AR

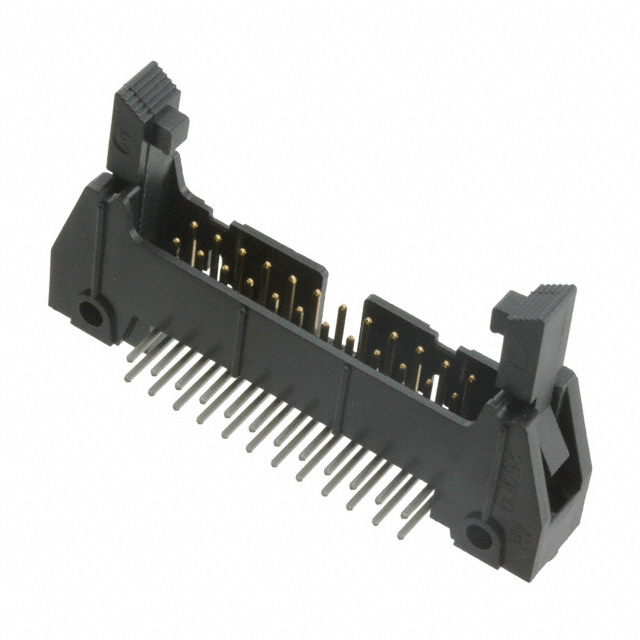

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D3627-5302-AR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number D3627-5302-AR
Manufacturer 3M
Description CONN HEADER 24POS R/A LONG LATCH
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 57646 pcs
Reference Price
(In US Dollars)		1000 pcs
$0.571

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.571

Product parameter

Part Number D3627-5302-AR Manufacturer 3M
Description CONN HEADER 24POS R/A LONG LATCH Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 57646 pcs Data sheet D3000 SeriesInterconnect Catalog
Category Connectors, Interconnects Voltage Rating -
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series D3000
Row Spacing - Mating 0.100" (2.54mm) Pitch - Mating 0.100" (2.54mm)
Packaging Tray Overall Contact Length -
Other Names 0-00-51119-90812-1
5111990812
51119908121
7010396952
80-0012-0539-4
80001205394
D3627-5302AR
D36275302AR		 Operating Temperature -55°C ~ 105°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 24 Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 9 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Insulation Height 0.340" (8.64mm) Insulation Color Black
Ingress Protection - Features Keying Slot, Mounting Flange
Fastening Type Latch Lock/Eject Hooks, Long Detailed Description Connector Header Through Hole, Right Angle 24 position 0.100" (2.54mm)
Current Rating 1.75A Contact Type Male Pin
Contact Shape Square Contact Material Brass
Contact Length - Post 0.112" (2.84mm) Contact Length - Mating 0.240" (6.10mm)
Contact Finish Thickness - Post 39.4µin (1.00µm) Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin Contact Finish - Mating Gold
Connector Type Header Applications -
