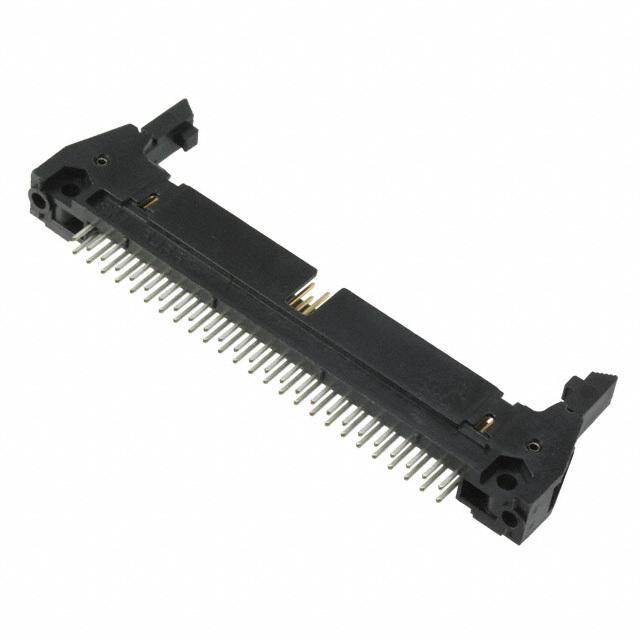

D3433-6302-AR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D3433-6302-AR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D3433-6302-AR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D3433-6302-AR |
|---|---|
| Manufacturer | 3M |
| Description | CONN HDR 50POS VERT L-LATCH 10AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 150 pcs | 600 pcs | 1050 pcs |
|---|---|---|---|---|---|
| $1.536 | $1.475 | $1.229 | $1.045 | $0.891 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | D3433-6302-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HDR 50POS VERT L-LATCH 10AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42559 pcs | Data sheet | D3000 SeriesInterconnect Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | D3000 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | 0.652" (16.56mm) |
| Other Names | 0-00-51119-90781-0 5111990781 51119907810 7010396944 80-0012-0508-9 80001205089 D3433-6302AR D34336302AR |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 50 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height | 0.680" (17.27mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Latch Lock/Eject Hooks, Long | Detailed Description | Connector Header Through Hole 50 position 0.100" (2.54mm) |
| Current Rating | 1.75A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.112" (2.84mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
