Home > Products > Connectors, Interconnects > Backplane Connectors - Hard Metric, Standard > CP2-SB110-G1-TG30

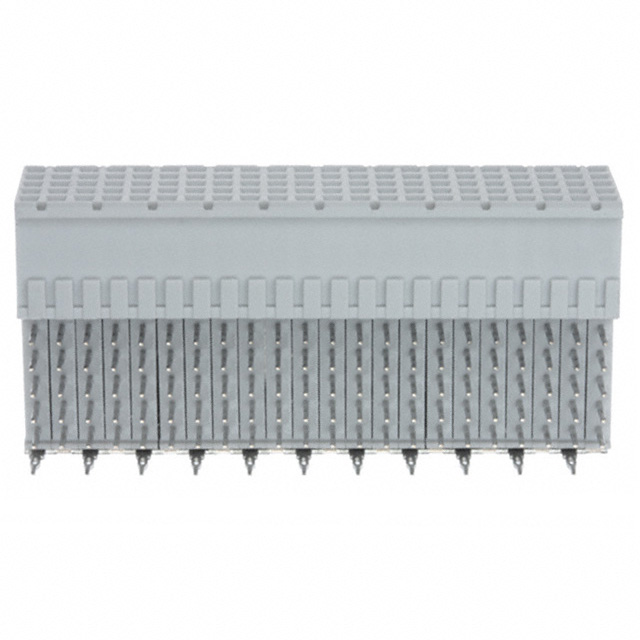

CP2-SB110-G1-TG30

CP2-SB110-G1-TG30

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CP2-SB110-G1-TG30 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CP2-SB110-G1-TG30
Manufacturer	3M
Description	CONN SOCKET TYPE-B 110POS R/A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5303 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	CP2-SB110-G1-TG30	Manufacturer	3M
Description	CONN SOCKET TYPE-B 110POS R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5303 pcs	Data sheet	CP2 Press-Fit Socket Type A
Category	Connectors, Interconnects	Voltage Rating	-
Termination	Press-Fit	Series	MetPak™ CP2
Pitch	0.079" (2.00mm)	Packaging	Bulk
Other Names	3M5571 5111990521 51119905212 80001202656 CP2SB110G1TG30	Operating Temperature	-55°C ~ 125°C
Number of Rows	5	Number of Positions Loaded	All
Number of Positions	110	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Upper Shield	Detailed Description	110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Connector Usage	CompactPCI	Connector Type	Receptacle, Female Sockets
Connector Style	B 22
