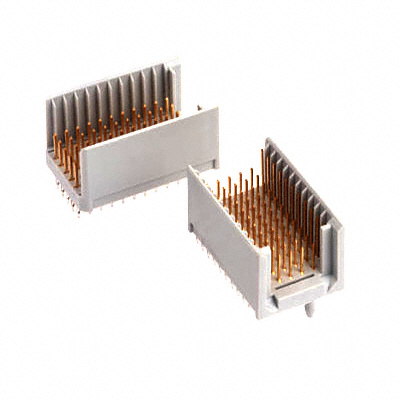

CP2-HC055-GF2-G30

CP2-HC055-GF2-G30

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CP2-HC055-GF2-G30 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CP2-HC055-GF2-G30
Manufacturer	3M
Description	CONN HEADER TYPE-C 55POS GOLD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4358 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	CP2-HC055-GF2-G30	Manufacturer	3M
Description	CONN HEADER TYPE-C 55POS GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4358 pcs	Data sheet	CP2 Press-Fit Header Type C
Category	Connectors, Interconnects	Voltage Rating	-
Termination	Press-Fit	Series	MetPak™ CP2
Pitch	0.079" (2.00mm)	Packaging	Bulk
Other Names	04801146402 15020374201	Operating Temperature	-55°C ~ 125°C
Number of Rows	5 + 2	Number of Positions Loaded	All
Number of Positions	77 (55 + 22 Ground)	Mounting Type	Through Hole
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Board Guide
Detailed Description	77 (55 + 22 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Connector Usage	CompactPCI
Connector Type	Header, Male Pins	Connector Style	C 11
