Home > Products > Connectors, Interconnects > Backplane Connectors - Hard Metric, Standard > CP2-HC055-E1-FJ

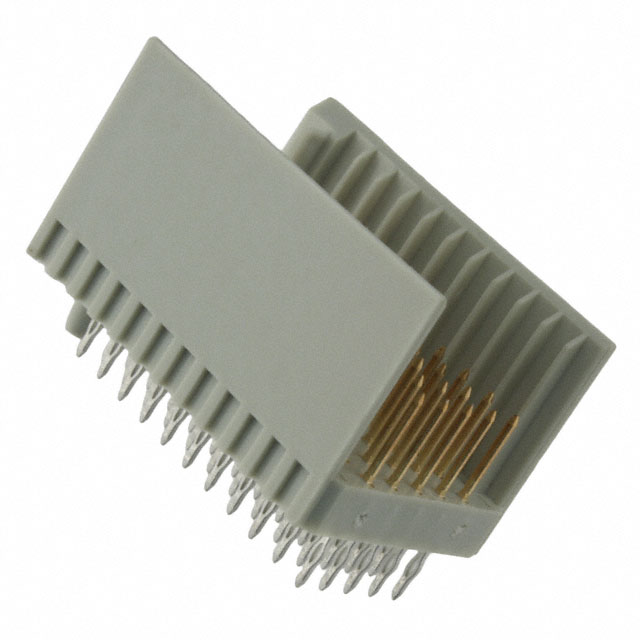

CP2-HC055-E1-FJ

CP2-HC055-E1-FJ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CP2-HC055-E1-FJ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CP2-HC055-E1-FJ
Manufacturer	3M
Description	HEADER PRESS-FIT TYPE C 55POS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 56166 pcs
Reference Price (In US Dollars)	1920 pcs
Reference Price (In US Dollars)	$0.586

Product parameter
Data sheet

Product parameter

Part Number	CP2-HC055-E1-FJ	Manufacturer	3M
Description	HEADER PRESS-FIT TYPE C 55POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	56166 pcs	Data sheet	CP2 Press-Fit Header Type C
Category	Connectors, Interconnects	Voltage Rating	-
Termination	Press-Fit	Series	MetPak™ CP2
Pitch	0.079" (2.00mm)	Packaging	Bulk
Other Names	5111990545 51119905458 80001202896 CP2HC055E1FJ	Operating Temperature	-55°C ~ 125°C
Number of Rows	5	Number of Positions Loaded	All
Number of Positions	55	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Board Guide
Detailed Description	55 Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole	Contact Finish Thickness	10.0µin (0.25µm)
Contact Finish	Gold	Connector Usage	CompactPCI
Connector Type	Header, Male Pins	Connector Style	C 11
