Home > Products > Connectors, Interconnects > Backplane Connectors - Hard Metric, Standard > CP2-HAB125-E1-TG30

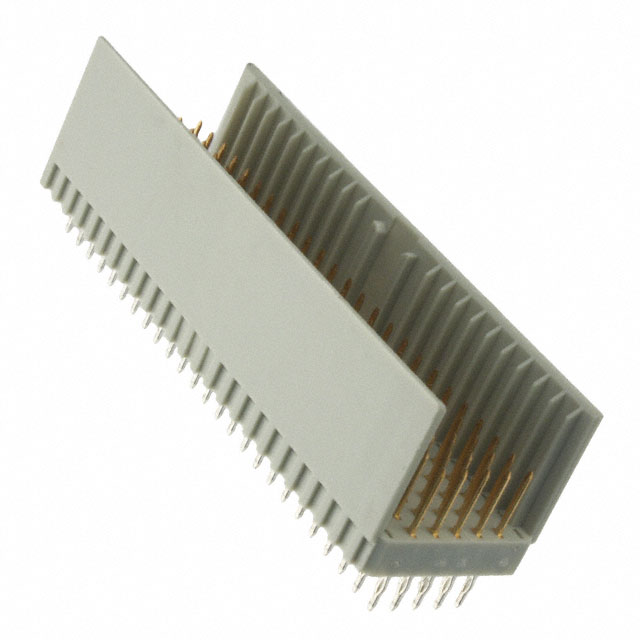

CP2-HAB125-E1-TG30

CP2-HAB125-E1-TG30

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CP2-HAB125-E1-TG30 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CP2-HAB125-E1-TG30
Manufacturer	3M
Description	HEADER PRESS-FIT TYPE AB 125POS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4579 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	CP2-HAB125-E1-TG30	Manufacturer	3M
Description	HEADER PRESS-FIT TYPE AB 125POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4579 pcs	Data sheet	CP2 Series
Category	Connectors, Interconnects	Voltage Rating	-
Termination	Press-Fit	Series	MetPak™ CP2
Pitch	0.079" (2.00mm)	Packaging	Bulk
Other Names	5111993724 51119937244 80001219775 CP2HAB125E1TG30	Operating Temperature	-55°C ~ 125°C
Number of Rows	5	Number of Positions Loaded	All
Number of Positions	125	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Detailed Description	125 Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Connector Usage	CompactPCI Hot Swap	Connector Type	Header, Male Pins
Connector Style	AB 25
